MCB 2P 10kA/15kA D-6A | 400V AC | DIN Rail Mount | IP20 by Hager
Miniature circuit breaker with 6A rated current and 10kA/15kA breaking capacity—ideal for residential, commercial, and industrial applications. Built for modular installation on DIN rails, with IP20 protection for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

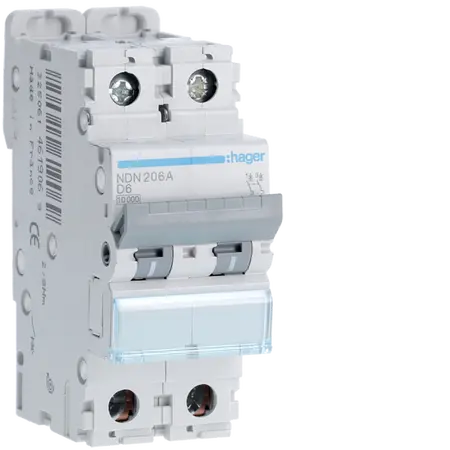

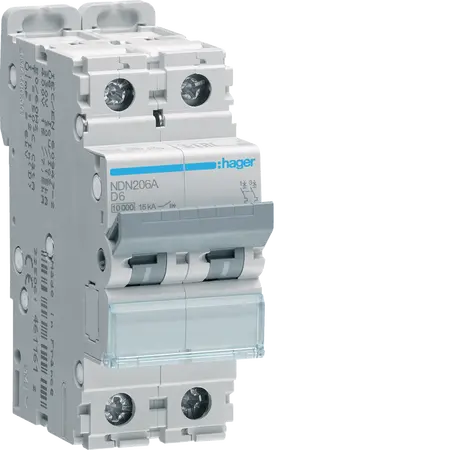

Product Name/Title: MCB 2P 10kA/15kA D-6A 2M
Brand: Hager
SKU: NDN206A
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Rated current: 6 A
- Rated ultimate short-circuit breaking capacity: 15 kA
- Rated operational voltage: 400 V AC
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6000 V
- Operating temperature: -25 to 70 °C
- Total power loss under IN: 2.68 W
- Electrical endurance: 4000 cycles
- Mechanical operations: 20000 cycles
- Dimensions (H x L x W): 83mm x 70mm x 35mm
- Weight: 0.5 kg
Key Features
- Rated current of 6 A with a breaking capacity of 10 kA and 15 kA.
- Designed for modular installation on DIN rails.
- IP20 ingress protection for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60947-2 for circuit breakers.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 2P 10kA/15kA D-6A 2M is available now for immediate purchase. Ideal for modular circuit protection in various applications.
