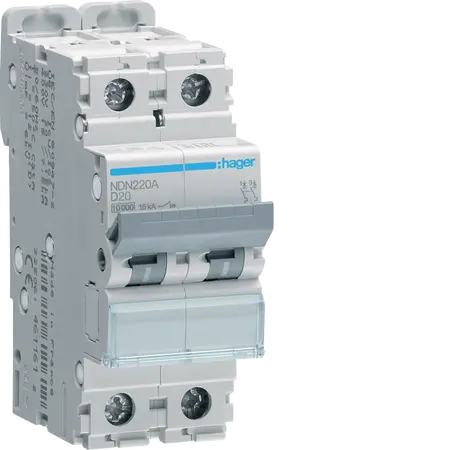

MCB 2P 15kA D-20A | Modular DIN Rail | IP20 Indoor by Hager
Miniature circuit breaker with 20A rated current and 15kA breaking capacity—ideal for residential, commercial, and light industrial applications. Built for modular DIN rail installation, with IP20 protection for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB 2P 10kA/15kA D-20A 2M
Brand: Hager
SKU: NDN220A
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 15 kA
- Rated operational voltage Ue: 400 V
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 6000 V
- Operating temperature range: -25°C to 70°C
- Total power loss under IN: 5.29 W
- Electrical endurance: 4000 cycles
- Mechanical operations: 20000 cycles
- Nominal tightening torque: 2.80 Nm
- Dimensions (H x L x W): 83mm x 70mm x 35mm
- Weight: 0.5 kg
Key Features
- Rated current of 20 A with a breaking capacity of 15 kA.
- Designed for modular installation on DIN rails.
- IP20 ingress protection for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 60947-2 for circuit breakers.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 2P 10kA/15kA D-20A 2M is available now for immediate purchase. Ideal for modular circuit protection in various applications.
