MCB 2P 6kA C-63A | Modular Installation | IP20 Rated by Hager
Miniature circuit breaker with 63A current and 6kA breaking capacity—ideal for residential and commercial electrical systems. Built for modular installation, with IP20 rating for enhanced safety.
Sign in
Please login to continue to your account.

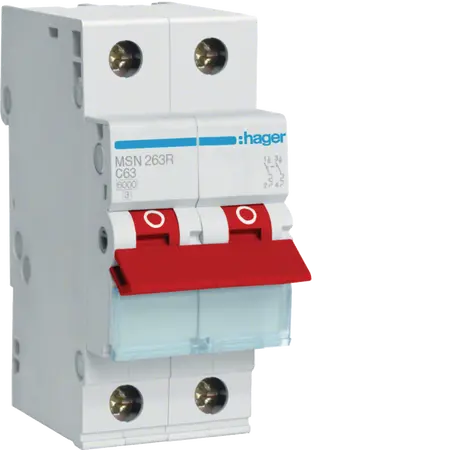

Product Name/Title: MCB 2P 6kA C-63A 2M
Brand: Hager
SKU: MSN263R
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
- Rated operational voltage: 415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 4000 V
- Frequency: 50 - 60 Hz
- Ingress Protection (IP) class: IP20
- Operating temperature: -25 to 70 °C
- Total power loss under IN: 11.40 W
- Dimensions (H x L x W): 83mm x 70mm x 35mm
- Weight: 0.5 kg
- Rated current of 63 A with a breaking capacity of 6 kA.
- Designed for modular installation with screw terminals.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, electrical panels
- Commercial: Offices, retail spaces, industrial applications
- Complies with AS/NZS 60898 for circuit breakers.
- RoHS and REACH compliant, contributing to reduced environmental impact.
2 years warranty against manufacturing defects.
The Hager MCB 2P 6kA C-63A 2M is available now for immediate purchase. Ideal for residential and commercial electrical systems.
