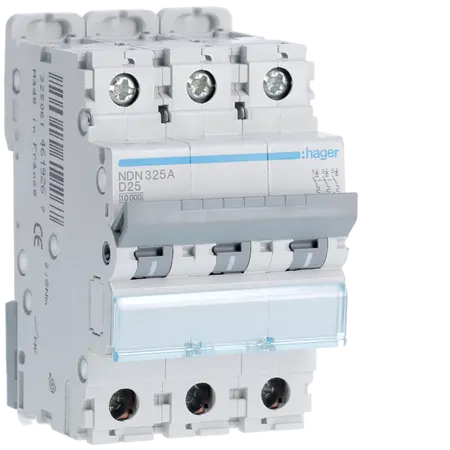

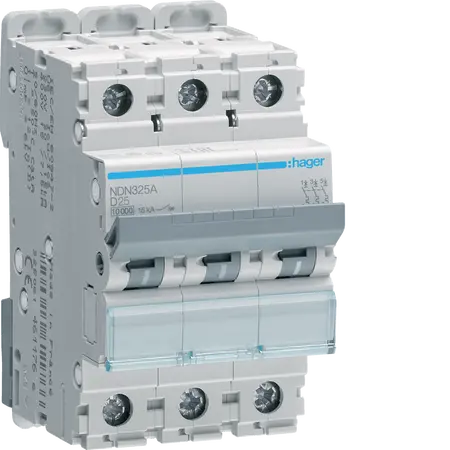

MCB 3P 10kA/15kA D-25A | Compact DIN Rail | IP20 by Hager

BRAND: :hager
SKU: NDN325A
$212.90 List price: $272.20
+ −
30 Days Return Delivery Options
Miniature circuit breaker with 25A rated current and 15kA short-circuit capacity—ideal for residential and commercial electrical systems. Built for safety and efficiency, with a compact design for easy DIN rail installation.

Product Name/Title: MCB 3P 10kA/15kA D-25A 3M

Brand: Hager

SKU: NDN325A

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 15 kA
  • Rated short-circuit breaking capacity Icn AC according to IEC 60898-1: 10 kA
  • Rated operational voltage Ue: 400 V
  • Rated insulation voltage Ui: 500 V
  • Rated impulse withstand voltage Uimp: 6000 V
  • Operating temperature: -25 to 70 °C
  • Electric endurance: 4000 cycles
  • Mechanical operations: 20000 cycles
  • Ingress Protection (IP) class: IP20
  • Dimensions (H x L x W): 83mm x 70mm x 52.5mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 25 A with a short-circuit breaking capacity of 15 kA.
  • Three-pole design suitable for various electrical applications.
  • Compact size for easy installation on DIN rails.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and electrical installations
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 3P 10kA/15kA D-25A 3M is available now for immediate purchase. Ideal for residential and commercial electrical systems.

NDN325A (NDN325A, 185 Kb) [Download]

(PEP_HAGE-00928-V02.01-EN.pdf, 40,154 Kb) [Download]

reach_declaration_NDN325A3.pdf (reach_declaration_NDN325A3.pdf, 103 Kb) [Download]

rohs_declaration_NDN325A3.pdf (rohs_declaration_NDN325A3.pdf, 104 Kb) [Download]

(NDN_MCBS_10KA_D.pdf, 92 Kb) [Download]

(TRANSFORMERPROTECTIONVALUEV2.pdf, 205 Kb) [Download]

(DECLARATION_24_3602_09_24.pdf, 650 Kb) [Download]

(DECLARATION_24_3594_09_24.pdf, 654 Kb) [Download]
