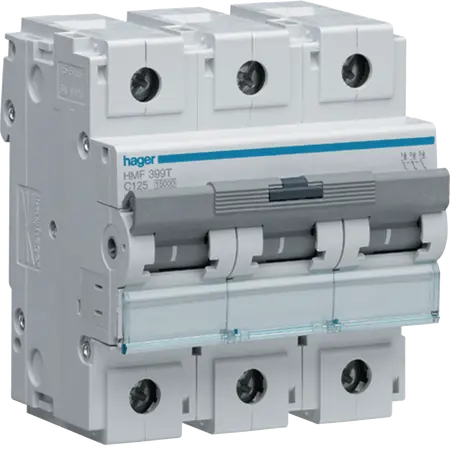

MCB 3P 10kA C-100A | 4.5M | High Endurance | Compact Design by Hager
MCB 3P with 10kA breaking capacity and 100A rated current—ideal for residential, commercial, and industrial applications. Built for durability, with high endurance and compact design for secure installation.
Sign in
Please login to continue to your account.
Product Name/Title: MCB 3P 10kA C-100A 4.5M
Brand: Hager
SKU: HMF390T
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
- Type of pole: 3P
- Rated operational voltage: 415V AC
- Rated insulation voltage: 500V
- Rated impulse withstand voltage: 6000V
- Frequency: 50 - 60 Hz
- Rated current: 100A
- Rated short-circuit breaking capacity: 10kA
- Nominal tightening torque: 3.5 - 5.0 Nm
- Electric endurance: 4000 cycles
- Mechanical operations: 20000 cycles
- Cross-section for massive conductors: 1 - 70 mm²
- Cross-section for flexible conductors: 1 - 50 mm²
- Dimensions (H x L x W): 90mm x 70mm x 80mm
- Weight: 0.5 kg
- 3-pole design for three-phase systems.
- Rated current of 100A with a breaking capacity of 10kA.
- Screw terminal connections for secure installation.
- High endurance with 20,000 mechanical operations.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Factories, manufacturing facilities
- Complies with AS/NZS 60947-2 for circuit breakers.
- RoHS and REACH compliant, contributing to reduced environmental impact.
2 years warranty against manufacturing defects.
The Hager MCB 3P 10kA C-100A 4.5M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
