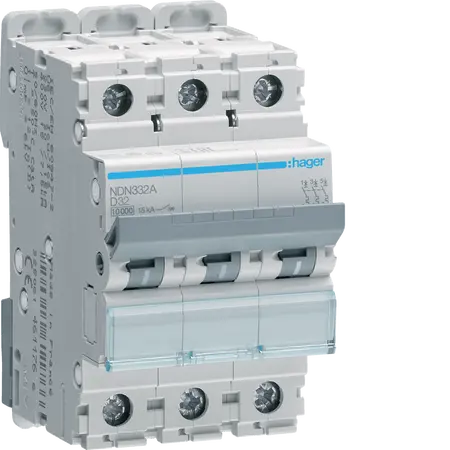

MCB 3P 15kA D-32A | 400V AC | IP20 Protection by Hager

BRAND: :hager
SKU: NDN332A
$212.90 List price: $272.20
+ −
30 Days Return Delivery Options
Miniature circuit breaker with 32A rated current and 15kA breaking capacity—ideal for residential, commercial, and industrial applications. Built for enhanced circuit protection, with IP20 ingress protection and wide operating temperature range.

Product Name/Title: MCB 3P 10kA/15kA D-32A 3M

Brand: Hager

SKU: NDN332A

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated current: 32 A
  • Rated short-circuit breaking capacity: 15 kA
  • Rated operational voltage: 400 V AC
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 6000 V
  • Frequency: 50 - 60 Hz
  • Electric endurance: 4000 cycles
  • Mechanical operations: 20000 cycles
  • Nominal tightening torque: 2.80 Nm
  • Dimensions (H x L x W): 83mm x 70mm x 52.5mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 32 A with a breaking capacity of 15 kA.
  • Three-pole design for enhanced circuit protection.
  • Wide operating temperature range from -25°C to 70°C.
  • IP20 ingress protection for safe indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Factories and manufacturing facilities
Standards & Compliance
  • Complies with AS/NZS 60947-2 for circuit breakers.
Environmental Benefits
  • RoHS compliant, ensuring reduced hazardous substances in manufacturing.
  • Commitment to improving environmental performance and reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 3P 10kA/15kA D-32A 3M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

NDN332A (NDN332A, 186 Kb) [Download]

(PEP_HAGE-00928-V02.01-EN.pdf, 40,154 Kb) [Download]

reach_declaration_NDN332A3.pdf (reach_declaration_NDN332A3.pdf, 103 Kb) [Download]

rohs_declaration_NDN332A3.pdf (rohs_declaration_NDN332A3.pdf, 104 Kb) [Download]

(NDN_MCBS_10KA_D.pdf, 92 Kb) [Download]

(TRANSFORMERPROTECTIONVALUEV2.pdf, 205 Kb) [Download]

(DECLARATION_24_3602_09_24.pdf, 650 Kb) [Download]

(DECLARATION_24_3594_09_24.pdf, 654 Kb) [Download]
