Trade Discount 22%

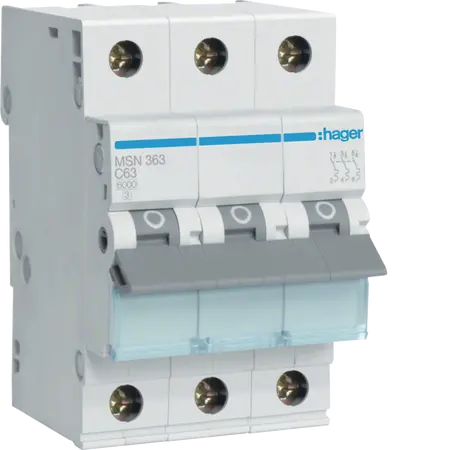

MCB 3P 6kA C-63A | 415V Rated | IP20 Protection by Hager
Miniature circuit breaker with 63A current and 6kA breaking capacity—ideal for residential and commercial electrical systems. Built for safety with IP20 protection and 415V operational voltage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB 3P 6kA C-63A 3M
Brand: Hager
SKU: MSN363
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Rated operational voltage: 415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 4000 V
- Frequency: 50 - 60 Hz
- Number of modules: 3
- Type of pole: 3P
- Rated short-circuit breaking capacity: 6 kA
- Nominal tightening torque: 2.80 Nm
- Ingress Protection (IP) class: IP20
- Total power loss under IN: 18.3 W
- Dimensions (H x L x W): 83mm x 70mm x 52.5mm
- Weight: 0.5 kg
Key Features
- Rated current of 63 A with a breaking capacity of 6 kA.
- Suitable for use in various climates with an operating temperature range of -25 to 70 °C.
- IP20 ingress protection for safe operation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 3P 6kA C-63A 3M is available now for immediate purchase. Ideal for residential and commercial electrical systems.
