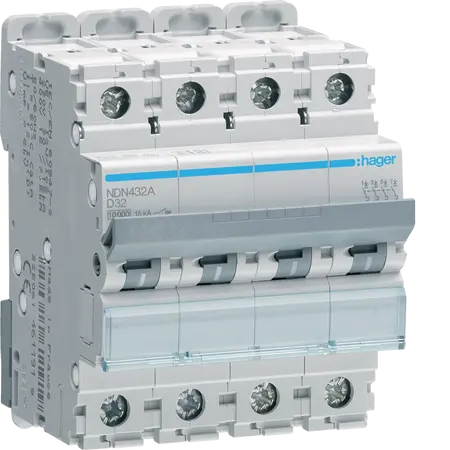

MCB 4P 10kA/15kA D-32A | 4M | High Endurance | IP20 by Hager
Miniature circuit breaker with 4-pole design and 10kA/15kA breaking capacity—ideal for residential and commercial circuit protection. Built for high endurance with 20,000 mechanical operations and IP20 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB 4P 10kA/15kA D-32A 4M
Brand: Hager
SKU: NDN432A
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Rated current: 32 A
- Rated ultimate short-circuit breaking capacity: 15 kA
- Rated operational voltage: 400 V AC
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6000 V
- Frequency: 50 - 60 Hz
- Ingress Protection (IP) class: IP20
- Total power loss under IN: 16.50 W
- Electric endurance: 4000 cycles
- Dimensions (H x L x W): 83mm x 70mm x 70mm
- Weight: 0.5 kg
Key Features
- 4-pole design for comprehensive circuit protection.
- Rated short-circuit breaking capacity of 10 kA and 15 kA.
- Wide operating temperature range from -25°C to 70°C.
- High endurance with 20,000 mechanical operations.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 60947-2 for circuit breakers.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 4P 10kA/15kA D-32A 4M is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable circuit protection.
