Trade Discount 20%

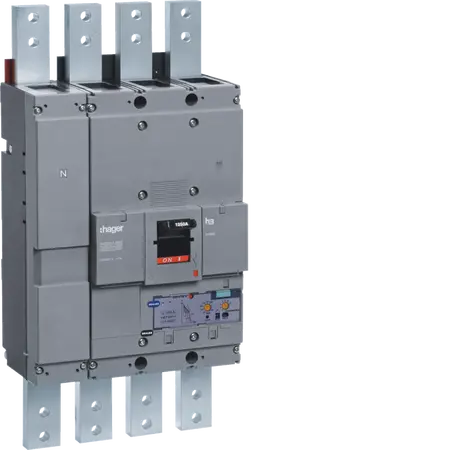

MCCB 1250A 4P 70kA Electronic LSI Trip Unit IP4X Grey Hager
Hager MCCB features 1250A, 4-pole and 70kA breaking capacity. Electronic LSI trip protection for industrial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 70 kA
- Rated operational voltage Ue: 220 - 690 V
- Rated insulation voltage Ui: 800 V
- Frequency: 50 - 60 Hz
- Ingress Protection (IP) class: IP4X
- Operating temperature: -25 - 70 °C
- Nominal tightening torque: 65 Nm
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10 kg
Key Features
- Rated current of 1250 A with a breaking capacity of 70 kA under 400 V AC.
- 4 poles with a toggle control/operation element.
- Fast tripping response time of 10 ms.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed to improve environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker H1600 4P 70kA 1250A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
