MCCB 1600A 4P 100kA Electronic LSI Trip Unit IP4X Grey Hager
Hager MCCB features 1600A, 4-pole and 100kA breaking capacity. Electronic LSI trip protection for industrial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 230 V AC: 100 kA
- Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 100 kA
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 70 kA
- Rated ultimate short-circuit breaking capacity Icu under 415 V AC: 70 kA
- Number of poles: 4
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 800 V
- Rated operational voltage Ue: 220 - 690 V
- Ingress Protection (IP) class: IP4X
- Operating temperature: -25 - 70 °C
- Dimensions (H x L x W): 200mm x 150mm x 300mm
- Weight: 10 kg
Key Features
- Rated current of 1600 A with a breaking capacity of 70 kA under 415 V AC.
- Fast tripping response time of 10 ms for enhanced safety.
- Fixed built-in construction with a toggle control element.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 60947-2 for safety and performance standards.
Environmental Benefits
- Designed to improve environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now

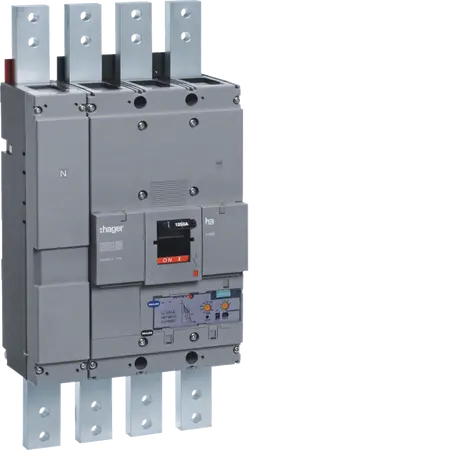

The Moulded Case Circuit Breaker h1600 4P 70kA 1600A LSI is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust circuit protection.
