Trade Discount 20%

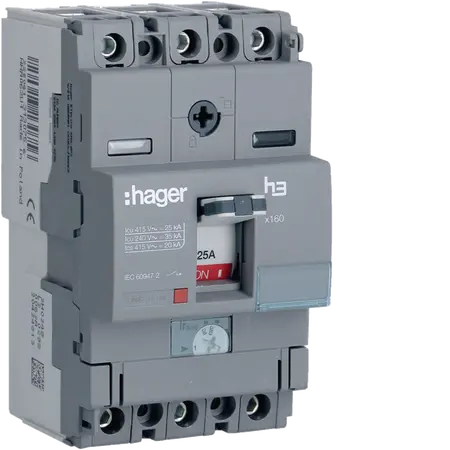

MCCB 25A 3P 25kA Screw Terminal x160 Frame IP4X 230V Grey Hager
Hager x160 MCCB features 25A and 25kA breaking capacity. Suited to commercial and industrial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 25 kA
- Rated service breaking capacity Ics under 230 V AC: 25 kA
- Rated operational voltage Ue: 220 - 415 V
- Total power loss under IN: 13.70 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000 cycles
- Ingress Protection (IP) class: IP4X
- Connection type: Screw terminal
- Flexible conductor cross-section: 4 - 70 mm²
- Rigid conductor cross-section: 4 - 95 mm²
- Dimensions (H x L x W): 130mm x 68mm x 75mm
- Weight: 1.5 kg
Key Features
- Rated current of 25 A with a breaking capacity of 25 kA under 400 V AC.
- IP4X ingress protection for enhanced safety.
- Screw terminal connections for flexible and rigid conductors.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- Residential: Main switchgear for home electrical systems
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 25A 25kA CTC is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.
