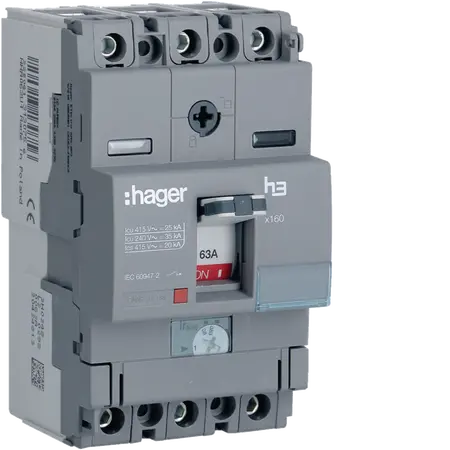

MCCB 63A 3P 25kA Screw Terminal x160 Frame IP4X 230V Grey Hager
Hager x160 MCCB features 63A and 25kA breaking capacity. Suited to commercial and industrial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 25 kA
- Rated service breaking capacity Ics under 230 V AC: 25 kA
- Rated operational voltage Ue: 220 - 415 V
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 690 V
- Total power loss under IN: 30 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000 cycles
- Connection type: Screw terminal
- Flexible conductor cross-section: 4 - 70 mm²
- Rigid conductor cross-section: 4 - 95 mm²
- Dimensions (H x L x W): 130mm x 68mm x 75mm
- Weight: 1.5 kg
Key Features
- Rated current of 63 A with a breaking capacity of 25 kA at 400 V AC.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in office buildings
- Residential: Main electrical panels in homes
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 63A 25kA CTC is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
