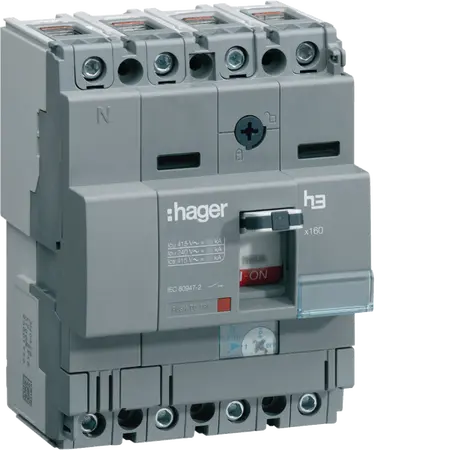

MCCB 63A 4P 25kA Screw Terminal x160 Frame IP4X 690V Grey Hager
Hager x160 MCCB features 63A and 25kA breaking capacity. Suited to commercial and industrial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400V AC: 25kA
- Rated service breaking capacity Ics under 400V AC: 20kA
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 690V
- Rated operational voltage Ue: 220 - 415V
- Total power loss under IN: 30W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000 cycles
- Connection type: Screw terminal
- Flexible conductor cross-section: 4 - 70 mm²
- Rigid conductor cross-section: 4 - 95 mm²
- Dimensions (H x L x W): 130mm x 68mm x 100mm
- Weight: 1.5 kg
Key Features
- Rated current of 63A with a breaking capacity of 25kA at 400V AC.
- Four poles for versatile applications.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in factories and manufacturing plants
- Commercial: Electrical systems in office buildings and retail spaces
- Residential: Main electrical panels in homes
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager Moulded Case Circuit Breaker 63A 25kA is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.
