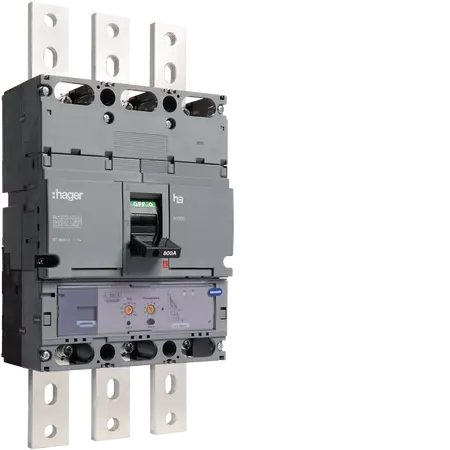

MCCB 800A 3P 100kA Electronic LSI Trip Unit IP4X Grey Hager
Hager MCCB features 800A, 3-pole and 100kA breaking capacity. Electronic LSI trip protection for industrial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 230 V AC: 100 kA
- Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 100 kA
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 70 kA
- Rated ultimate short-circuit breaking capacity Icu under 415 V AC: 70 kA
- Number of poles: 3
- Frequency: 50 - 60 Hz
- Rated insulation voltage: 800 V
- Rated operational voltage: 220 - 690 V
- Ingress Protection (IP) class: IP4X
- Operating temperature: -25 - 70 °C
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10 kg
Key Features
- Rated current of 800 A with a breaking capacity of 70 kA under 415 V AC.
- Fast tripping response time of 10 ms for enhanced safety.
- Fixed built-in construction type for reliable performance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Designed to improve environmental performance by reducing carbon footprint.
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker H1000 3P 70kA 800A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
