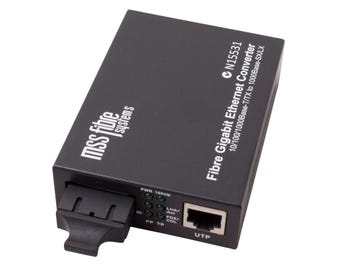

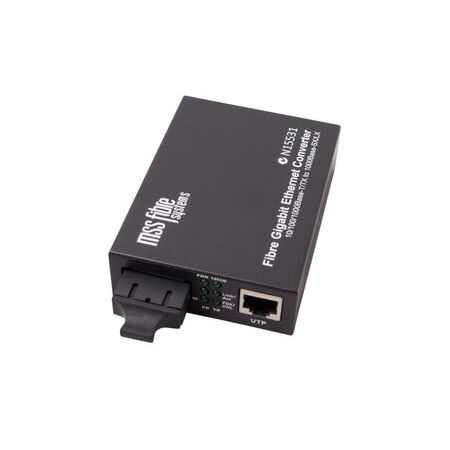

Media Converter 1000B-T to 1000B-LX | 1310NM Wavelength | 20KM Range | SC Connector by Cabac
This media converter supports 1000B-T to 1000B-LX connections with a 1310NM wavelength and a 20KM range—ideal for long-distance data transmission. Built for network professionals, it ensures reliable connectivity with SC connectors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Media Converter 1000B-T to 1000B-LX | 1310NM | 20KM Range | SC Connector by Unspecified Brand
Brand: Cabac
SKU: FC-1000S20
Alternatively Known As: Gigabit Media Converter, Fibre Optic Media Converter, 1000Base-TX to 1000Base-FX Converter, SC Fibre Converter
Technical Specifications
- Data Rate: 1000Mbps/1Gbps (1 Gigabit Ethernet)
- Wavelength: 1310nm Singlemode
- Maximum Transmission Distance: 20km
- Interface: SC Fibre Connector
- Supports 10/100/1000Base-TX to 1000Base-FX conversion
- Full and half duplex auto-negotiation
- Store-and-forward switching architecture
- Auto-MDIX on RJ-45 port
- Dimensions (H x L x W): 25mm x 70mm x 100mm
- Weight: 0.3 kg
Key Features
- Automatic identification of MDI/MDI-X cross line
- 10/100/1000MBPS port with full half duplex auto-negotiation
- Back pressure flow control for full duplex
- Converter mode with auto-change forward (switch) function
- Store-and-forward switching architecture
- Auto-MDIX capability on the twisted-pair port
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper fibre optic and electrical connections.
Applications
- LAN
- FTTx
- Telecommunication networks
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables efficient network infrastructure reducing the need for additional hardware
- Supports energy-efficient data transmission over long distances
Warranty Information
Standard 1 year warranty against manufacturing defects.
Available Now
The Cabac 1000B-T to 1000B-LX SM 1310NM SC 20KM Media Converter is available now for immediate purchase. Ideal for telecommunications and network infrastructure requiring long distance fibre connectivity.
