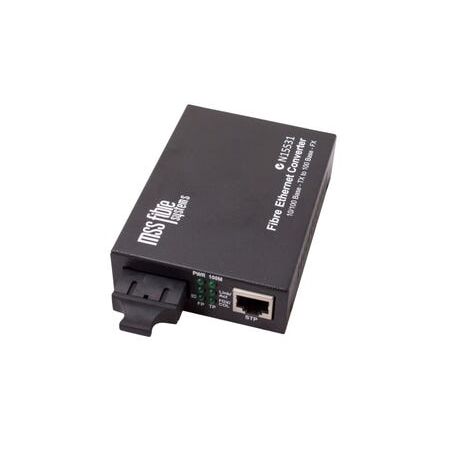

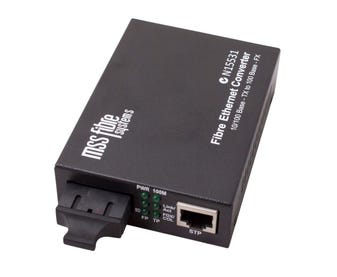

Media Converter 100B-TX to 100B-LX | 1310NM Wavelength | 40KM Range | SC Connector by Cabac
This media converter seamlessly connects 100B-TX to 100B-LX with a 1310NM wavelength and a 40KM range—ideal for long-distance data transmission. Built for network professionals, it ensures reliable connectivity with SC connector compatibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Media Converter 100B-TX to 100B-LX | 1310NM | 40KM Range | SC Connector by Matchmaster
Brand: Cabac
SKU: FC-110S40
Alternatively Known As: Fast Ethernet Media Converter, Fibre Optic Media Converter, 100BaseTX to 100BaseLX Converter, SC Fibre Media Converter
Technical Specifications
- Data Rate: 100Mbps (Fast Ethernet)
- Wavelength: 1310nm Singlemode
- Maximum Transmission Distance: 40km
- 10/100BaseT/TX auto-negotiating RJ-45 twisted-pair connector port with Auto-MDIX
- Built-in 10/100 switch for fibre cable connection
- Supports full duplex and half duplex modes
- Link Fault Pass Through (LFP) function
- LED indicators for link/activity and speed
- Dimensions (H x L x W): 25mm x 70mm x 100mm
- Weight: 0.2 kg
Key Features
- Auto-Cross over for MDI/MDIX in TP port
- Auto-Negotiation in TP port
- Supports link fault pass through (LFP) function
- LED display for link/activity, full/half 10/100M
- Converter mode with auto-change-forward (switch) function
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper fibre optic and network connections.
Applications
- LAN
- FTTx
- Telecommunication networks
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces need for extensive cabling by enabling fibre optic connectivity
- Low power consumption design
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac 100B-TX to 100B-LX SM 1310NM SC 40KM Media Converter is available now for immediate purchase. Ideal for LAN, FTTx, and telecommunication network applications.
