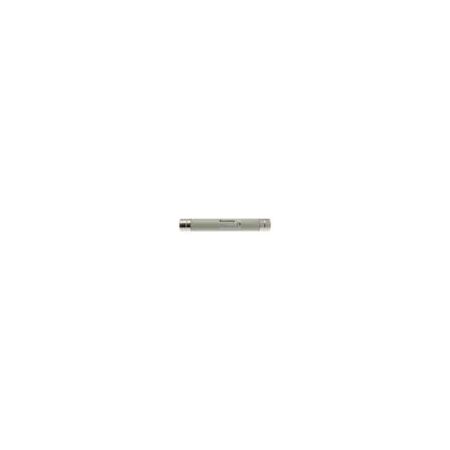

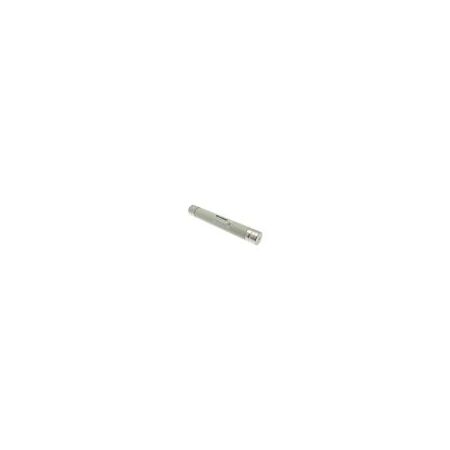

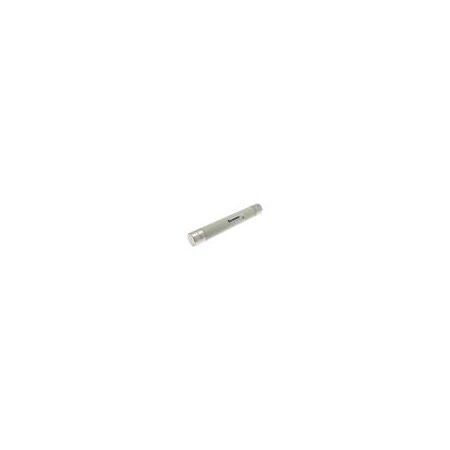

Medium Voltage Air Fuse 12kV 50A | 40kA Breaking Capacity | Back-up Fuse with Striker | Clip-in Mounting by Eaton
This medium voltage air fuse is rated at 12kV and 50A, featuring a 40kA breaking capacity and a striker for fuse indication. Ideal for industrial and commercial electrical installations, it ensures reliable back-up protection in medium voltage systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Medium Voltage Air Fuse 12kV 50A | 40kA Breaking Capacity | Back-up Fuse with Striker | Clip-in Mounting by Eaton
Brand: Eaton
SKU: 12BDGHA50
Alternatively Known As: Medium Voltage Air Fuse, 12kV Air Fuse, 50 Amp Air Fuse, Eaton Bussmann Air Fuse, Back-up Air Fuse with Striker
Technical Specifications
- Amperage Rating: 50 A
- Voltage Rating: 12 kV AC
- Breaking Capacity: 40 kA
- Performance Category: Back-up (IEC 60282-1)
- Rated Frequency: 50 Hz
- Resistance: 14.5 ohms
- Fuse Indicator: With Striker
- Construction Size: 51 x 359 mm
- Mounting Method: Clip-in
- Standard: British Standard BS 2692-1
- Dimensions (H x L x W): 51mm x 359mm x 51mm
- Weight: 1.72 kg
Key Features
- Medium voltage air fuse-link rated at 12 kV AC
- 50 Ampere current rating
- Back-up fuse classification according to IEC 60282-1
- Includes striker for fuse indication
- Breaking capacity of 40 kA
- Clip-in mounting method for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrical professional to ensure compliance with safety standards and proper system integration.
Applications
- Medium voltage electrical systems requiring back-up protection
- Industrial and commercial electrical installations
- Electrical distribution networks
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical system safety, reducing risk of faults and associated environmental hazards
- Durable design reduces waste through long service life
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton 12KV 50AMP 2" 'A' Air Fuse is available for immediate purchase, ideal for medium voltage electrical protection applications.
