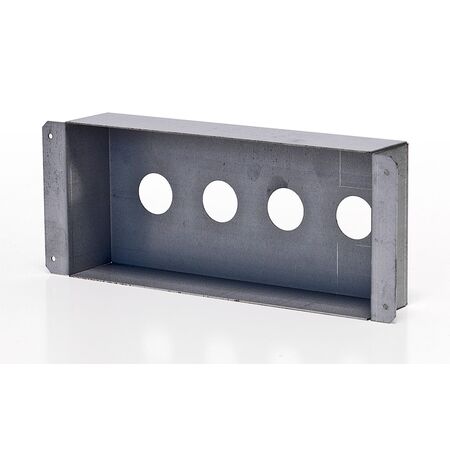

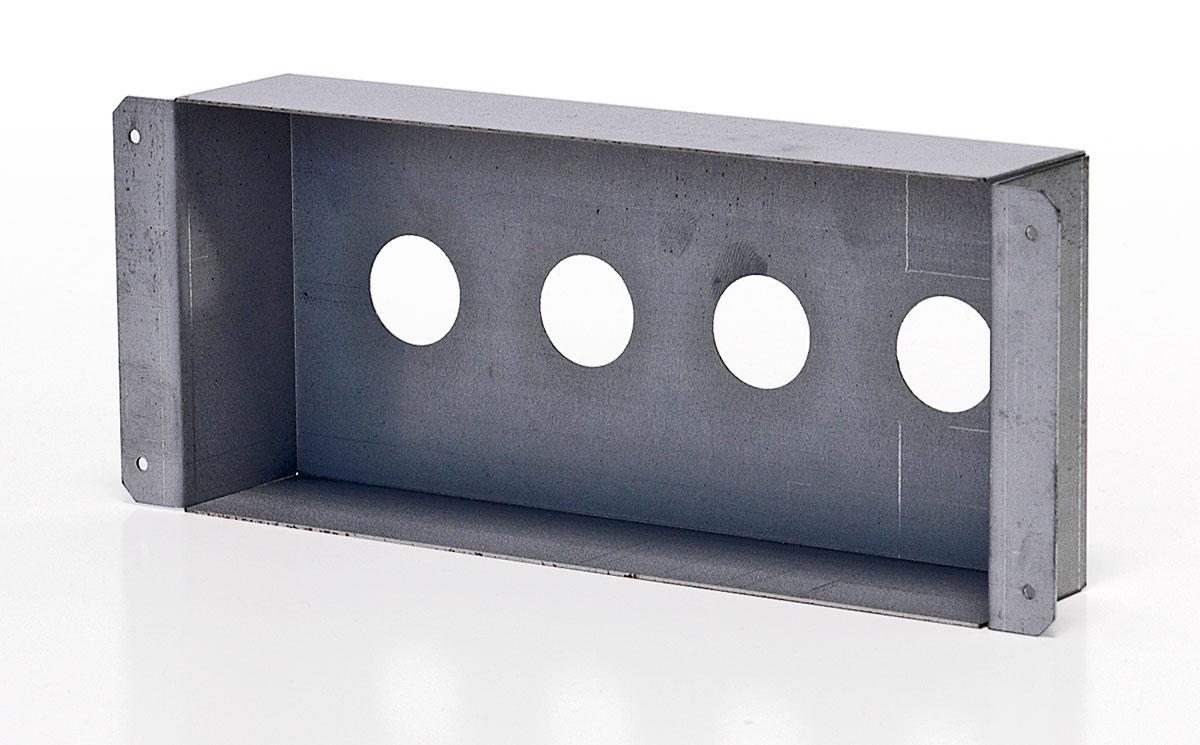

Metal Wall Bracket to Suit 200 Series Door and Room Stations iCentral
iCentral metal wall bracket features metal construction to Suit 200 Series Door Stations and Room Stations. Ideal for wall mounting System One intercom stations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: iCentral 100-976 Metal Wall Bracket, System One Room/Door Wall Box, 200 Series Intercom Mounting Bracket
Technical Specifications
- Product Type: Metal wall bracket and recess-mounting wall box
- Compatibility: iCentral System One 200 Series door and room stations
- Compatible Stations: R200 room stations and D200 door stations
- Construction: Metal
- Installation: Recess mounted behind the station back box
- Required Wall Cut-out: Approximately 201 mm wide x 91 mm high
- SKU: 100-976
- Dimensions (H x L x W): 91mm x 201mm x 30mm
- Weight: 0.25 kg
Key Features
- Designed for iCentral System One 200 Series door and room stations
- Provides a secure metal mounting base for recessed installations
- Compatible with R200 room stations and D200 door stations
- Supports neat cable routing behind the intercom station
- Suitable for use with optional fascia, trim plate and weather-shield accessories
Applications
- Recess mounting iCentral System One R200 room stations
- Recess mounting iCentral System One D200 door stations
- Residential intercom installations
- Commercial and multi-room System One intercom installations
Environmental Benefits
- Durable metal construction can support an extended service life and reduce replacement waste
- Metal components are generally recyclable at end of life, subject to local recycling facilities
Warranty Information
Covered by the iCentral intercom and security product warranty for two years against defects from the date of purchase, subject to the manufacturer's warranty conditions.
Available Now
Available through iCentral, Valet and authorised Australian distributors, subject to distributor stock levels.
