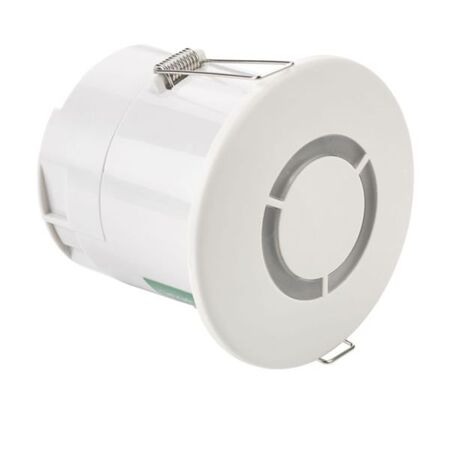

Microwave Presence/Absence Detector | IP40 Rated | 2-Channel Switching | 360° Detection | @Each of 1 | by CP Electronics
The Microwave Presence/Absence Detector is designed for efficient lighting control in commercial and office environments. With IP40 protection and a 360° detection angle, it ensures optimal performance up to 8m. Ideal for energy-saving applications, this compact unit features two-channel switching and is programmable via infrared remote, making it perfect for modern energy management solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Microwave Presence/Absence Detector | IP40 Rated | 2-Channel Switching | 360° Detection | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS6-PRM-2CH
Alternatively Known As: Microwave Presence Detector, Ceiling Mounted Occupancy Sensor, IP40 Microwave Motion Sensor, 2-Channel Presence Detector
Technical Specifications
- Detection technology: High frequency microwave
- Mounting method: Flush-mounted ceiling installation
- Degree of protection: IP40
- Impact strength: IK05
- Operating voltage: 230V AC, 50Hz
- Detection angle: 360° horizontal
- Maximum reach: 8m sideways and frontally, 16m diameter on floor
- Number of switching zones: 2
- Switching power: 1380W max
- Response value luminosity adjustable: 0-2000 lux
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds
- Operating temperature range: -10 to 50 °C
- Material: Thermoplastic, halogen free, matt white finish
- Mandatory neutral connection required
- Standby current: approx. 2.93 mA
- Dimensions (H x L x W): 76mm x 68.5mm x 76mm
- Weight: 0.15 kg
Key Features
- Mid-range microwave presence/absence detection
- Low profile design for flush ceiling mounting
- IP40 rated for indoor use
- Two channel switching with lux level sensing
- Programmable via infrared remote handset
- Self-contained unit with pluggable connections
- Forced switch off and absence detection functionality
- Suitable for mounting height up to 2.8 meters
- 360° horizontal detection angle with 8m reach sideways and frontally
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Automatic control of lighting in commercial and office buildings
- Heating and ventilation control systems
- Staircase light control
- Energy-saving presence and absence detection in indoor environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting and HVAC systems based on occupancy
- Helps lower carbon footprint through efficient energy management
- Supports sustainable building practices by optimizing resource use
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The CP Electronics PRM Switching Compact IP40 Ceiling Flush Mounted Microwave Presence/Absence Detector 2-Channel is available for immediate purchase, ideal for commercial and office lighting control applications.
