Microwave Presence/Absence Detector | IP40 Rated | 360° Detection Angle | Surface Mounted Design | @EA of 1 | by CP Electronics
The Microwave Presence/Absence Detector is designed for efficient lighting control in both commercial and residential settings. With a 360° detection angle and an IP40 rating, it ensures reliable operation while saving energy. Ideal for automatic control of lighting and HVAC systems, this detector features highly sensitive microwave technology and is easy to install, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

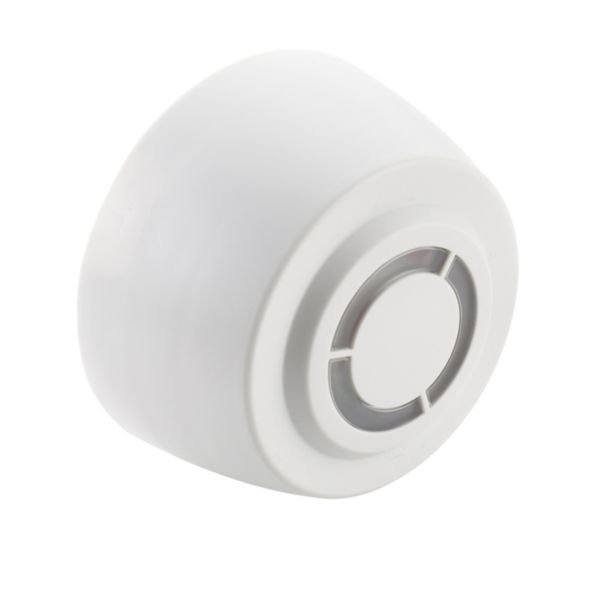

Product Name/Title: Microwave Presence/Absence Detector | IP40 Rated | 360° Detection Angle | Surface Mounted Design | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS6SM-PRM
Alternatively Known As: Microwave Presence Detector, Ceiling Mounted Occupancy Sensor, IP40 Presence Sensor, PRM Switching Detector
Technical Specifications
- Detection technology: High frequency microwave
- Voltage: 230 V AC, 50 Hz
- Max switching power: 2300 W
- Detection angle: 360° horizontal
- Max reach: 8 m sideways and frontally, 16 m diameter on floor
- Switch-off delay: 10 seconds
- Switch-on delay: 1 second
- Standby consumption: approx. 3 mA
- Degree of protection: IP40
- Impact strength: IK05
- Material: Thermoplastic, halogen free, matt white finish
- Operating temperature range: -10 to 50 °C
- Mandatory neutral connection required
- Terminals capacity: 2.5 mm²
- Dimensions (H x L x W): 95mm x 52mm x 95mm
- Weight: 0.15 kg
Key Features
- Surface mounted design with IP40 rating
- Highly sensitive microwave presence/absence detection
- Switching with lux level sensing
- Programmable via dedicated programming handset
- Absence detection functionality
- Remote operation with supplied remote control
- Self-contained unit, easy to install via back plate
- Suitable for mounting height of 2.8 meters
- 360° horizontal detection angle with 8m reach sideways and frontally
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal device performance.
Applications
- Automatic control of lighting in commercial and residential buildings
- Heating and ventilation control systems
- Staircase lighting control
- Presence and absence detection for energy saving
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting and HVAC systems based on presence detection
- Helps lower carbon footprint through efficient energy management
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The CP Electronics PRM Switching IP40 Ceiling Surface Mounted Microwave Presence/Absence Detector is available for immediate purchase, ideal for commercial and residential lighting control applications.
