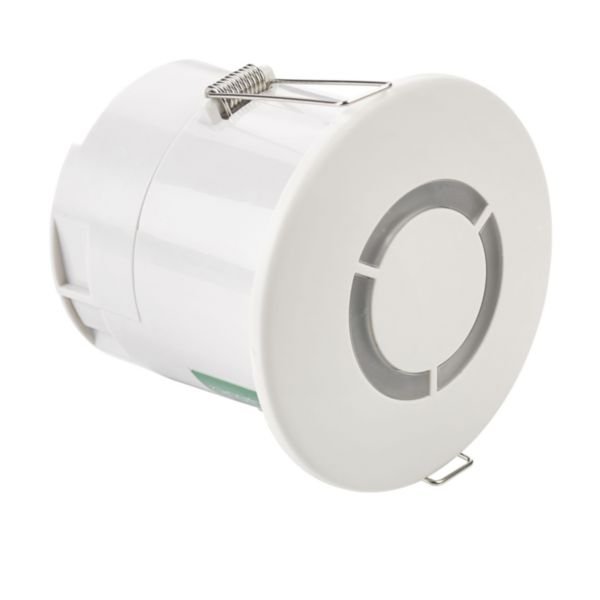

Microwave Presence/Absence Detector | IP40 Rated | 360° Detection Angle | Flush Mounted Design | @EA of 1 | by CP Electronics
The Microwave Presence/Absence Detector is designed for efficient lighting control in commercial spaces, featuring a 360° detection angle and an IP40 rating for indoor use. With a maximum reach of 8 meters and volt-free contact output, it integrates seamlessly into existing systems, ensuring energy savings and enhanced convenience.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Microwave Presence/Absence Detector | IP40 Rated | 360° Detection Angle | Flush Mounted Design | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS6-PRM-VFC
Alternatively Known As: Microwave presence detector, ceiling mounted motion sensor, IP40 presence sensor, flush mount occupancy sensor, volt free contact detector
Technical Specifications
- Detection technology: High frequency microwave
- Detection angle: 360° horizontal
- Maximum reach: 8 m sideways and frontally, 16 m diameter on floor
- Nominal voltage: 230 V AC, 50 Hz
- Switching power: 2300 W max
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds
- Standby consumption: approx. 3.08 mA
- Operating temperature range: -10 to 50 °C
- IP rating: IP40
- Impact rating: IK05
- Material: Halogen free thermoplastic, matt white finish
- Mounting method: Flush-mounted in ceiling tile or surface mounted with back box
- Connection terminals capacity: 2.5 mm²
- Mandatory neutral connection required
- Dimensions (H x L x W): 76mm x 68.5mm x 76mm
- Weight: 0.15 kg
Key Features
- Mid-range microwave presence/absence detection
- Low profile design for flush ceiling mounting
- IP40 rated for indoor use
- Volt free contact output for flexible integration
- 360° detection angle with up to 8m reach sideways and frontally
- Programmable via infrared remote handset
- Self-contained unit with plug-in connections
- Switching with lux level sensing and absence detection
- Halogen free thermoplastic material with matt white finish
- Suitable for nominal voltage 230V AC, 50Hz
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and correct integration with building systems.
Applications
- Automatic control of lighting in commercial and office buildings
- Presence and absence detection for energy saving
- HVAC system control integration
- Staircase lighting control
- Suitable for flush mounting in ceiling tiles or surface mounting with back box
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching lighting and HVAC systems based on occupancy
- Helps lower carbon footprint through efficient energy management
- Halogen free materials reduce environmental impact
Warranty Information
Standard manufacturer warranty applies, typically 2 years against defects.
Available Now
The CP Electronics PRM Switching Compact IP40 Ceiling Flush Mounted Microwave Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting automation applications.
