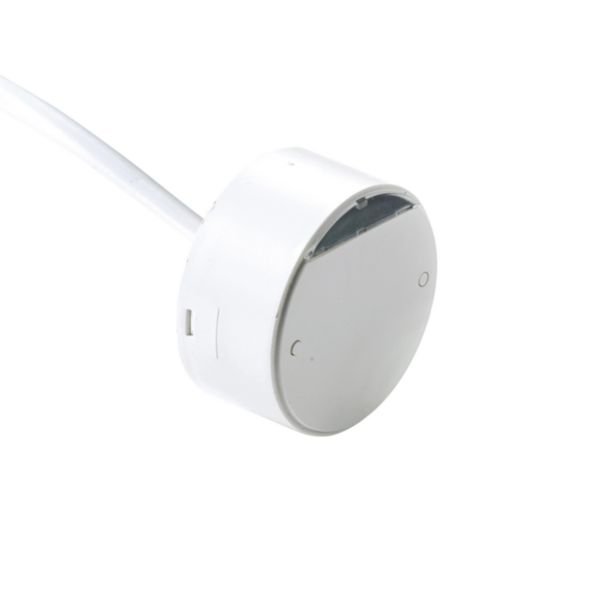

Microwave Presence Detector Head | IP40 Rated | 360° Detection Angle | 1m Lead Included | @Each of 1 | by CP Electronics
The Microwave Presence Detector Head is designed for luminaire integration, featuring an IP40 rating and a 360° detection angle. Ideal for automatic lighting control in commercial and industrial spaces, it supports various lighting types and includes a 1m lead for easy installation. With adjustable sensitivity and luminosity, this detector ensures energy-efficient operation and extends lamp life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Microwave Presence Detector Head | IP40 Rated | 360° Detection Angle | 1m Lead Included | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS5-PRM-SL-L1
Alternatively Known As: Microwave Presence Detector Head, Miniature Microwave Occupancy Sensor, Luminaire Presence Sensor, IP40 Microwave Motion Detector
Technical Specifications
- Detection technology: High frequency microwave sensor
- Detection angle: 360° horizontal
- Max reach: 4 m sideways, 4 m frontally, 8 m diameter on floor
- Voltage: 230 V AC, 50 Hz
- Max switching power: 1800 W
- Relay rating: 6A
- Standby current: 7.8 mA
- Operating temperature: -10°C to 80°C
- IP rating: IP40
- Material: Thermoplastic, halogen free
- Mounting method: Surface mounted
- Response value luminosity adjustable: 0-2000 lx
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds
- Max duty cycle: 99 minutes
- Dimensions (H x L x W): 39mm x 19mm x 39mm
- Weight: 0.1 kg
Key Features
- Miniature microwave presence detector designed for luminaire mounting
- IP40 rated with 360° horizontal detection angle
- Switching with lux level sensing and programmable via handset
- Adjustable response sensitivity and luminosity
- Suitable for switching incandescent, fluorescent, and compact fluorescent lighting
- Surface mounted with thermoplastic, halogen-free, matt white housing
- Max switching power of 1800 W with 6A relay
- Standby consumption of 7.8 mA
- Operating temperature range from -10°C to 80°C
- Includes 1m lead for connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Automatic lighting control in large, awkward-shaped spaces
- Luminaire integration for presence detection
- Suitable for incandescent, fluorescent, and compact fluorescent lighting
- Ideal for commercial and industrial lighting control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching lighting based on occupancy
- Supports energy-efficient lighting control to lower carbon footprint
- Helps extend lamp life by reducing unnecessary operation
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The CP Electronics PRM Switching Miniature IP40 Microwave Presence Detector Head with 1m Lead is available for immediate purchase, ideal for integration into luminaires for automated lighting control in commercial and industrial environments.
