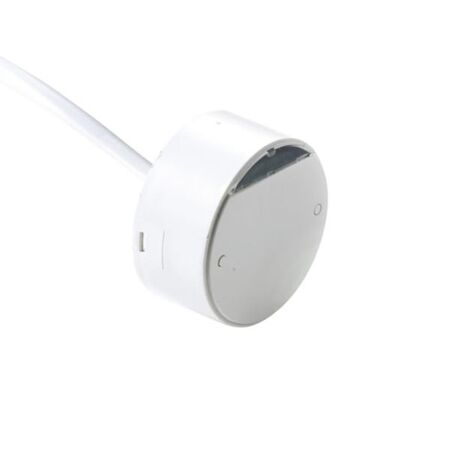

Microwave Presence Detector Head | IP40 Rated | 360° Detection | 1800W Max Power | @EA of 1 | by CP Electronics
The Microwave Presence Detector Head is designed for luminaire integration, featuring an IP40 rating and a 360° detection angle. Ideal for automatic lighting control in commercial and industrial spaces, it switches various lighting types with a maximum power of 1800W. With adjustable timeout settings and remote operation capabilities, this sensor enhances energy efficiency by minimizing unnecessary lighting usage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Microwave Presence Detector Head | IP40 Rated | 360° Detection | 1800W Max Power | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS5-PRM-SL-L03
Alternatively Known As: Microwave Presence Detector Head, Miniature Microwave Sensor, Luminaire Presence Detector, IP40 Microwave Motion Sensor
Technical Specifications
- Detection technology: High frequency microwave sensor
- Detection angle: 360° horizontal
- Max reach: 4 m sideways, 4 m frontally, 8 m diameter on floor
- Voltage: 230 V AC, 50 Hz
- Max switching power: 1800 W
- Relay rating: 6A
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds (adjustable)
- Standby consumption: 7.8 mA
- Operating temperature: -10 to 80 °C
- Material: Thermoplastic, halogen free, matt finish
- IP rating: IP40
- IK rating: IK05
- Mounting method: Surface mounted
- Mandatory neutral connection required
- Terminals capacity: 1.5 mm²
- Connection cable length: 300 mm lead
- Dimensions (H x L x W): 39mm x 19mm x 39mm
- Weight: 0.1 kg
Key Features
- Miniature microwave presence detector designed for luminaire mounting
- IP40 rated with 360° detection angle
- Switches incandescent, fluorescent, and compact fluorescent lighting
- Adjustable timeout period for load switching off
- Programmable via UHS5 or UNLCDHS handsets
- Presence detection with lux level sensing
- Surface mounted with thermoplastic, halogen-free, matt white housing
- Max switching power of 1800 W with 6A relay
- Response value sensitivity and luminosity adjustable
- Remote operation and supplied remote control included
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Automatic lighting control in large, awkwardly shaped spaces
- Luminaire integration for presence detection
- Suitable for use in commercial and industrial lighting systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching lighting based on occupancy
- Supports energy-efficient lighting control with adjustable lux level sensing
- Helps lower carbon footprint by minimizing unnecessary lighting usage
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The CP Electronics PRM Switching Miniature IP40 Microwave Presence Detector Head with 300mm Lead is available for immediate purchase, ideal for integration into luminaires for automated lighting control in commercial and industrial settings.
