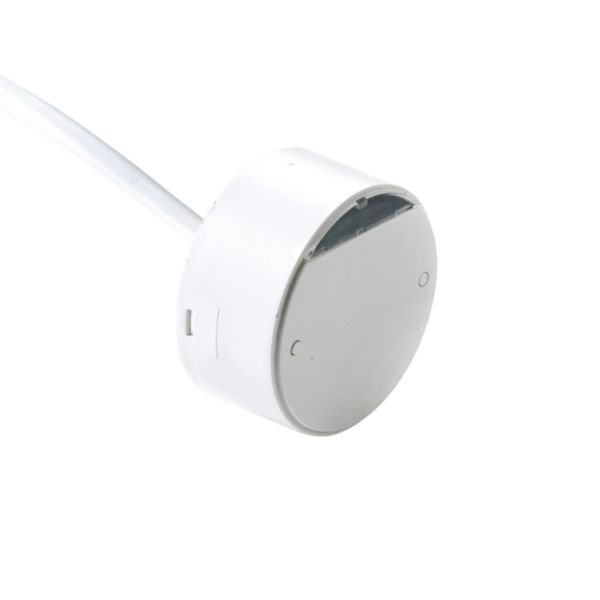

Microwave Presence Detector Head | IP40 Rated | 360° Detection Angle | 1800W Max Power | @Each of 1 | by CP Electronics
The Microwave Presence Detector Head is designed for seamless integration into luminaires, featuring an IP40 rating and a 360° detection angle. With a maximum switching power of 1800W, it automatically controls lighting in commercial and industrial spaces, ensuring energy efficiency and convenience. Ideal for large, awkwardly shaped areas, this sensor enhances sustainability by reducing energy consumption when spaces are unoccupied.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Microwave Presence Detector Head | IP40 Rated | 360° Detection Angle | 1800W Max Power | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS5-PRM-L03
Alternatively Known As: Microwave Presence Detector Head, Miniature Microwave Occupancy Sensor, Luminaire Integrated Presence Sensor, IP40 Microwave Motion Sensor
Technical Specifications
- Detection technology: High frequency microwave sensor
- Detection angle: 360° horizontal
- Max reach: 4 m sideways, 4 m frontally, 8 m diameter on floor
- Voltage: 230 V AC, 50 Hz
- Max switching power: 1800 W
- Relay rating: 6A
- Standby current: 7.8 mA
- Operating temperature: -10°C to 80°C
- IP rating: IP40
- Material: Thermoplastic, halogen free
- Mounting method: Surface mounted
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds
- Response value luminosity range: 0-2000 lx
- Mandatory neutral connection required
- Dimensions (H x L x W): 39mm x 19mm x 39mm
- Weight: 0.1 kg
Key Features
- Miniature microwave presence detector designed for luminaire integration
- IP40 rated with 360° horizontal detection angle
- Switches lighting loads automatically with optional manual control
- Adjustable timeout period for absence detection
- Compatible with incandescent, fluorescent, and compact fluorescent lighting
- Programmable via UHS5 or UNLCDHS handsets
- Presence detection with lux level sensing
- Surface mounted with thermoplastic, halogen-free, matt white housing
- Max switching power of 1800 W with 6A relay
- Response value sensitivity and luminosity adjustable
- Operating temperature range from -10°C to 80°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Lighting control in large, awkwardly shaped spaces
- Integration inside luminaires for automatic lighting control
- Suitable for incandescent, fluorescent, and compact fluorescent lighting
- Ideal for commercial and industrial lighting automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching off lighting when areas are unoccupied
- Supports energy-efficient lighting control to lower carbon footprint
- Enhances sustainability by optimizing lighting usage
Warranty Information
Standard manufacturer warranty applies; please refer to CP Electronics for specific warranty terms.
Available Now
The CP Electronics PRM Switching Miniature IP40 Microwave Presence/Absence Detector Head with 300mm Lead is available for immediate purchase, ideal for integration in commercial and industrial lighting systems.
