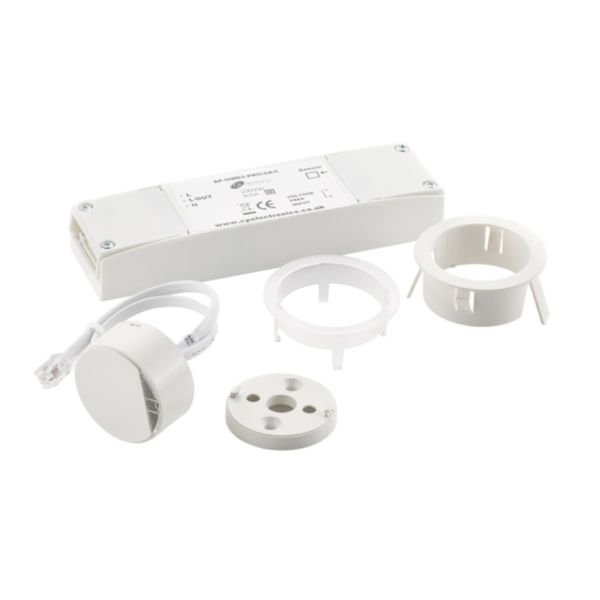

Microwave Presence Detector | IP40 Rated | 360° Detection Angle | Adjustable Time Delay | @EA of 1 | by CP Electronics
The Microwave Presence Detector is designed for automatic lighting control, featuring a 360° detection angle and IP40 rating. Ideal for commercial and office environments, it offers energy-saving presence and absence detection with adjustable time delays. Built for reliability, this detector is perfect for installation in ceiling tiles or solid ceilings, ensuring efficient lighting management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Microwave Presence Detector | IP40 Rated | 360° Detection Angle | Adjustable Time Delay | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS5-PRM-SA-C
Alternatively Known As: Microwave Presence Detector, Miniature Microwave Sensor, Ceiling Mounted Presence Sensor, IP40 Microwave Occupancy Sensor
Technical Specifications
- Detection technology: High frequency microwave sensor
- Detection angle: 360° horizontal
- Detection range: 4 m sideways, 4 m frontally, 8 m diameter on floor
- Voltage: 230 V AC, 50 Hz
- Max switching power: 1380 W
- Max starting current: 80 A
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds (adjustable)
- Standby consumption: approx. 7.8 mA
- Operating temperature: -10 to 80 °C
- IP rating: IP40
- Impact rating: IK05
- Material: Halogen free thermoplastic, matt white finish
- Mounting: Surface mounted in ceiling tiles or solid ceilings
- Mandatory neutral connection required
- Terminals capacity: 1.5 mm²
- Programmable via UHS5 or UNLCDHS handsets
- Dimensions (H x L x W): 40mm x 20mm x 40mm
- Weight: 0.1 kg
Key Features
- Microwave presence detection with lux level sensing
- Absence detection functionality with adjustable time delay
- Programmable via UHS5 or UNLCDHS handsets
- Switches incandescent, fluorescent, and compact fluorescent lighting
- Direct dim variant supports DALI or DSI digital dimming ballasts
- Analogue dim variant supports 1-10V dimming ballasts
- Surface mounted with supplied clips for unobtrusive installation
- Remote operation and supplied remote control
- High frequency movement sensor technology
- IP40 rated with IK05 impact strength
- Halogen free thermoplastic material with matt white finish
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and correct programming of the device.
Applications
- Automatic lighting control in commercial and office buildings
- Presence and absence detection for energy saving in lighting systems
- Suitable for ceiling tile or solid ceiling installation
- Ideal for use in staircases and corridors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching lights on/off based on occupancy
- Supports dimming control to optimize lighting levels and save power
- Halogen free materials contribute to safer disposal and reduced environmental impact
Warranty Information
Standard manufacturer warranty applies; typically 2 years against defects.
Available Now
The CP Electronics PRM Switching Miniature IP40 Ceiling Flush Mounted Microwave Presence/Absence Detector is available for immediate purchase, ideal for energy-efficient lighting control in commercial and office environments.
