Trade Discount 20%

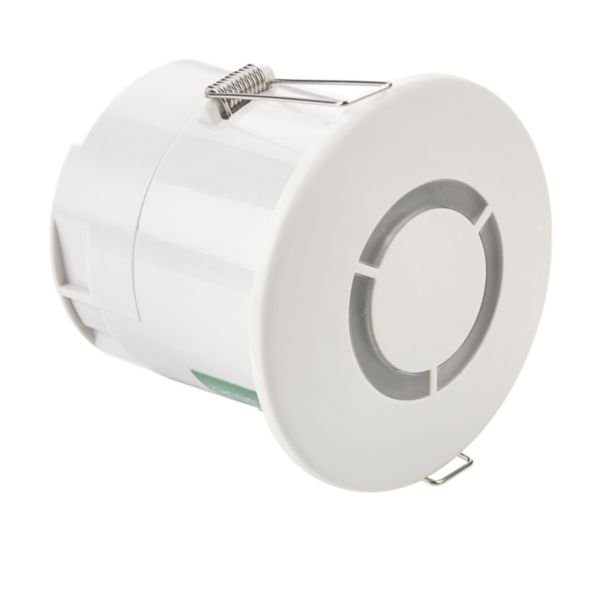

Microwave Presence Detector | IP40 Rated | 360° Detection Angle | Flush Mounted Design | @EA of 1 | by CP Electronics
The Microwave Presence Detector is designed for efficient lighting control in commercial and office environments. With an IP40 rating and a 360° detection angle, it ensures optimal performance while saving energy. This compact, flush-mounted unit features highly sensitive microwave detection technology and is ideal for automatic control of lighting and HVAC systems, making it perfect for modern energy-efficient buildings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Microwave Presence Detector | IP40 Rated | 360° Detection Angle | Flush Mounted Design | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS6-PRM
Alternatively Known As: Microwave Presence Detector, Ceiling Mounted Occupancy Sensor, IP40 Microwave Motion Sensor, PRM Switching Detector
Technical Specifications
- Detection technology: High frequency microwave
- Detection range: 8 m sideways and frontally, 16 m diameter on floor
- Mounting height: Optimum 2.8 m
- Detection angle: 360° horizontal
- Voltage: 230 V AC, 50 Hz
- Max switching power: 2300 W
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds
- Standby consumption: 2.89 mA
- Degree of protection: IP40
- Impact strength: IK05
- Material: Thermoplastic, halogen free
- Colour: White (RAL 9002)
- Operating temperature: -10 to 50 °C
- Mandatory neutral connection required
- Terminals capacity: 2.5 mm²
- Dimensions (H x L x W): 76mm x 68.5mm x 76mm
- Weight: 0.1 kg
Key Features
- Low profile design for flush mounting into ceiling tiles
- Highly sensitive microwave detection technology
- IP40 rated for indoor use
- Switching with lux level sensing
- Programmable via infrared remote handset
- Presence and absence detection functionality
- Self-contained unit with pluggable connections
- Optional voltage free contact and 2 channel options available
- Forced switch off and staircase light controller features
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Automatic control of lighting in commercial and office buildings
- Heating and ventilation control systems
- Staircase lighting control
- Energy saving presence and absence detection in indoor environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting and HVAC systems based on occupancy
- Helps lower carbon footprint through efficient energy management
- Supports sustainable building practices by optimizing resource use
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The CP Electronics PRM Switching Compact IP40 Ceiling Flush Mounted Microwave Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting control applications.
