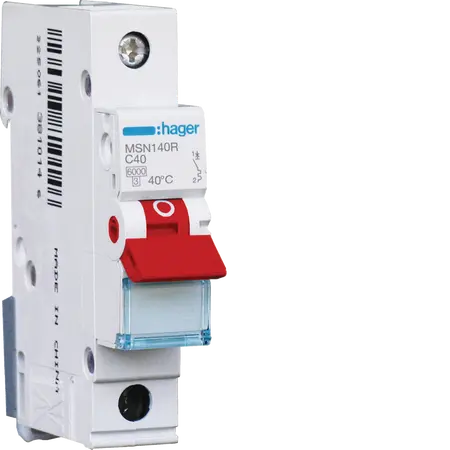

Miniature Circuit Breaker 1P 6kA C-40A | IP20 | Compact Design by Hager
Miniature circuit breaker with 40A current and 6kA breaking capacity—ideal for residential, commercial, and light industrial applications. Built for safety and reliability, with IP20 protection and compact design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB 1P 6kA C-40A 1M
Brand: Hager
SKU: MSN140R
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Rated operational voltage: 240 - 415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 4000 V
- Frequency: 50 - 60 Hz
- Nominal tightening torque: 2.80 Nm
- Cross-section of input and output: 1 - 35 mm² for massive conductors, 1 - 25 mm² for flexible conductors
- Total power loss under IN: 4.80 W
- Dimensions (H x L x W): 83mm x 70mm x 17.5mm
- Weight: 0.5 kg
Key Features
- Rated current of 40 A with a breaking capacity of 6 kA.
- Suitable for use in various climates with an operating temperature range of -25 to 70 °C.
- IP20 ingress protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 1P 6kA C-40A 1M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
