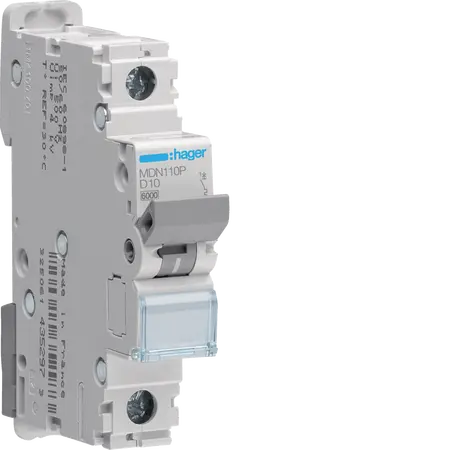

Miniature Circuit Breaker 1P 6kA D-10A | IP20 Rated | Compact Design by Hager
Miniature circuit breaker with 10A current and 6kA breaking capacity—ideal for residential and commercial electrical installations. Built for safety, with IP20 rating and compact design for easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB 1P 6kA D-10A 1M
Brand: Hager
SKU: MDN110P
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Rated short-circuit breaking capacity: 6 kA
- Rated operational voltage: 240-415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 4000 V
- Frequency: 50-60 Hz
- Nominal tightening torque: 2.80 Nm
- Cross-section for massive conductors: 1-35 mm²
- Cross-section for flexible conductors: 1-25 mm²
- Total power loss under IN: 1.81 W
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- Rated current of 10 A with a breaking capacity of 6 kA.
- Suitable for use in a variety of environmental conditions with an operating temperature range of -25 to 70 °C.
- IP20 ingress protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and electrical installations
- Commercial: Offices and retail spaces
- General: Any application requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 1P 6kA D-10A 1M is available now for immediate purchase. Ideal for residential and commercial electrical installations.
