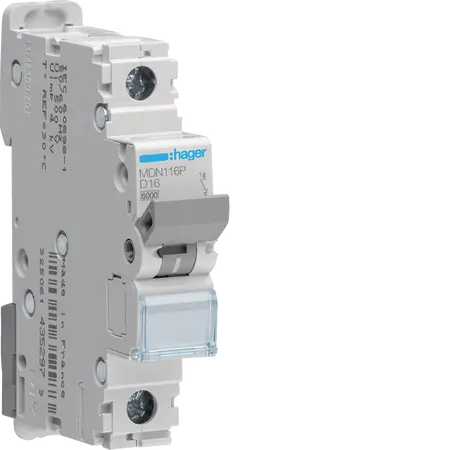

Miniature Circuit Breaker 1P 6kA D-16A | 240-415V | IP20 Rated by Hager

BRAND: :hager

SKU: MDN116P

$45.20 List price: $57.80

+ −

30 Days Return Delivery Options

Miniature circuit breaker with 16A current and 6kA breaking capacity—ideal for residential, commercial, and light industrial applications. Built for safety and reliability, with IP20 rating and wide operational temperature range.

Description
Attachments

Product Name/Title: MCB 1P 6kA D-16A 1M

Brand: Hager

SKU: MDN116P

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications

Rated short-circuit breaking capacity: 6 kA
Rated operational voltage: 240-415 V
Rated insulation voltage: 500 V
Rated impulse withstand voltage: 4000 V
Frequency: 50-60 Hz
Nominal tightening torque: 2.80 Nm
Cross-section of input and output conductors: 1-35 mm² for massive, 1-25 mm² for flexible
Dimensions (H x L x W): 85mm x 70mm x 18mm
Weight: 0.5 kg

Key Features

Rated current of 16A with a breaking capacity of 6kA.
Wide operational temperature range from -25°C to 70°C.
IP20 ingress protection rating.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring circuit protection

Standards & Compliance

Complies with AS/NZS 60898 for circuit protection devices.

Environmental Benefits

RoHS compliant, contributing to reduced environmental impact.
Commitment to improving environmental performance by reducing carbon footprint.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 1P 6kA D-16A 1M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

MDN116P (MDN116P, 124 Kb) [Download]

(PEP_Hager_HAGE-00607-V01.03-EN_06022024.pdf, 377 Kb) [Download]

reach_declaration_MDN116P3.pdf (reach_declaration_MDN116P3.pdf, 103 Kb) [Download]

rohs_declaration_MDN116P3.pdf (rohs_declaration_MDN116P3.pdf, 104 Kb) [Download]

(DECLARATION_24_3601_10_24.pdf, 537 Kb) [Download]

(DECLARATION_24_3593_10_24.pdf, 542 Kb) [Download]
