Home/Electrical/Switchgear/Circuit Breakers/Miniature Circuit Breaker 1P 6kA D-50A | IP20 | Compact Design by Hager

Trade Discount 22%

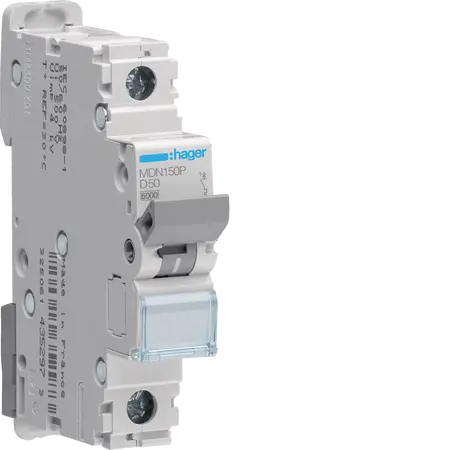

Miniature Circuit Breaker 1P 6kA D-50A | IP20 | Compact Design by Hager

BRAND: :hager

SKU: MDN150P

$45.20 List price: $57.80

+ −

30 Days Return Delivery Options

Miniature circuit breaker with 50A current and 6kA breaking capacity—ideal for residential, commercial, and light industrial applications. Built for safety and reliability, with IP20 protection and compact design.

Description
Attachments

Product Name/Title: MCB 1P 6kA D-50A 1M

Brand: Hager

SKU: MDN150P

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications

Rated operational voltage: 240-415 V
Rated insulation voltage: 500 V
Rated impulse withstand voltage: 6000 V
Frequency: 50-60 Hz
Nominal tightening torque: 2.80 Nm
Connection type: Screw terminal
Cross-section for massive conductors: 1-35 mm²
Cross-section for flexible conductors: 1-25 mm²
Total power loss under IN: 4.70 W
Dimensions (H x L x W): 85mm x 70mm x 18mm
Weight: 0.5 kg

Key Features

Rated current of 50 A with a short-circuit breaking capacity of 6 kA.
Wide operational temperature range from -25°C to 70°C.
IP20 ingress protection rating.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring circuit protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

RoHS compliant, contributing to reduced environmental impact.
Commitment to improving environmental performance by reducing carbon footprint.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 1P 6kA D-50A 1M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

MDN150P (MDN150P, 125 Kb) [Download]

(PEP_Hager_HAGE-00607-V01.03-EN_06022024.pdf, 377 Kb) [Download]

reach_declaration_MDN150P3.pdf (reach_declaration_MDN150P3.pdf, 103 Kb) [Download]

rohs_declaration_MDN150P3.pdf (rohs_declaration_MDN150P3.pdf, 104 Kb) [Download]

(DECLARATION_24_3601_10_24.pdf, 537 Kb) [Download]

(DECLARATION_24_3593_10_24.pdf, 542 Kb) [Download]
