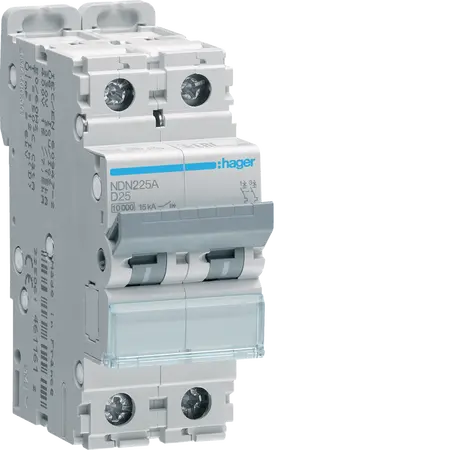

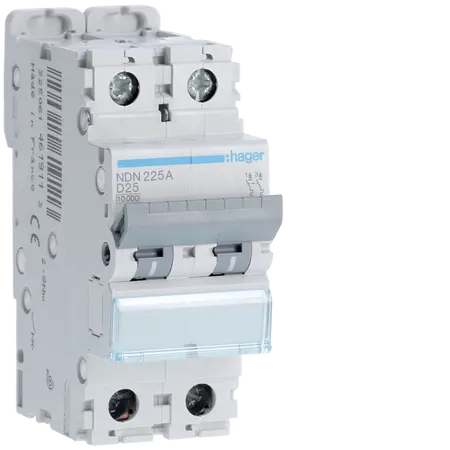

Miniature Circuit Breaker 2P 15kA | 25A Rated | Compact 2M Design by Hager
Miniature circuit breaker with 25A rated current and 15kA short-circuit capacity—ideal for residential and commercial electrical systems. Built for safety and efficiency, with compact 2-module design for easy DIN rail installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB 2P 10kA/15kA D-25A 2M
Brand: Hager
SKU: NDN225A
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 15 kA
- Rated short-circuit breaking capacity Icn AC according to IEC 60898-1: 10 kA
- Rated operational voltage Ue: 400 V
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 6000 V
- Operating temperature: -25 to 70 °C
- Total power loss under IN: 7.20 W
- Electrical endurance: 4000 cycles
- Mechanical operations: 20000 cycles
- Dimensions (H x L x W): 83mm x 70mm x 35mm
- Weight: 0.5 kg
Key Features
- Rated current of 25 A with a short-circuit breaking capacity of 15 kA.
- Compact design with 2 modules for easy installation on DIN rails.
- IP20 ingress protection for safe operation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and electrical installations
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 2P 10kA/15kA D-25A 2M is available now for immediate purchase. Ideal for residential and commercial electrical systems.
