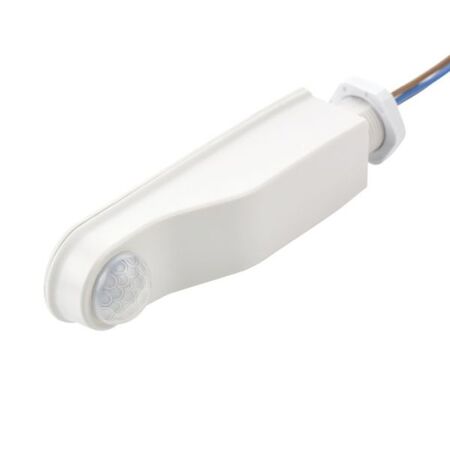

Miniature Retrofit IP65 Ceiling Luminaire Mounted PIR Presence Detector | 14m Detection Range | Auto On/Off Functionality | by CP Electronics
The Miniature Retrofit IP65 Ceiling Luminaire Mounted PIR Presence Detector is designed for efficient outdoor lighting control, featuring a robust IP65 rating and a detection range of up to 14 meters at a 9-meter mounting height. Ideal for commercial and industrial spaces, this batten mount solution offers energy-saving presence detection with auto on/off functionality, ensuring reliable performance in damp environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Retrofit IP65 Ceiling Luminaire Mounted PIR Presence Detector | 14m Detection Range | Auto On/Off Functionality | by CP Electronics
Brand: CP Electronics
SKU: GIMB
Alternatively Known As: Miniature PIR Occupancy Sensor, IP65 Batten Mounted PIR Detector, Ceiling Mounted PIR Sensor, Retrofit PIR Presence Detector
Technical Specifications
- IP Rating: IP65
- Detection Range: Up to 14 meters at 9 meters mounting height
- Mounting: Batten style luminaire retrofit
- Cable Length: Pre-wired 1 meter
- Power Supply: Integral
- Suitable for luminaires with 20mm cable entry
- Background Monitoring: No
- Acoustic Sensor: No
- Dimensions (H x L x W): 40mm x 100mm x 60mm
- Weight: 0.1 kg
Key Features
- Durable miniature batten mounted PIR occupancy sensor
- IP65 rated for outdoor and wash-down areas
- Presence detection with auto on/off functionality
- Range up to 14m at 9m mounting height
- Batten mount retrofit solution with integral power supply
- Pre-wired with 1m cable length
- Suitable for luminaires with 20mm cable entry
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Outdoor lighting control
- Wet and damp area lighting automation
- Ceiling luminaire retrofit installations
- Energy-saving presence detection in commercial and industrial spaces
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on presence detection
- IP65 rating ensures durability and longevity in harsh environments, reducing waste from frequent replacements
Warranty Information
Standard manufacturer warranty applies, typically 2 years.
Available Now
The CP Electronics Miniature Retrofit IP65 Ceiling Luminaire Mounted PIR Presence Detector is available for immediate purchase, ideal for retrofit lighting control in outdoor and damp environments.
