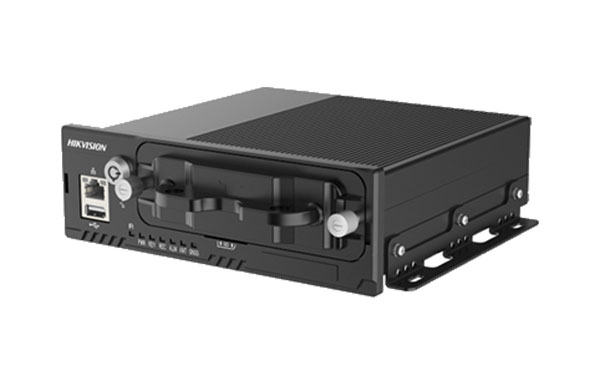

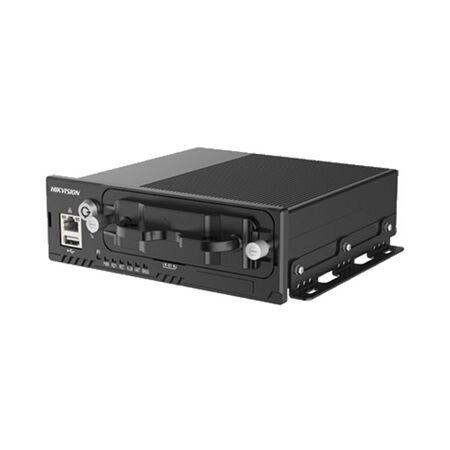

Mobile DVR 4 Channel 1TB SSD Hikvision
Hikvision mobile DVR features 4 channels and a 1TB SSD. Ideal for in-vehicle mobile surveillance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Mobile DVR, 4-Channel Vehicle Video Recorder, DS-MP5604 Mobile Video Recorder
Technical Specifications
- Model: DS-MP5604(1T)
- Channels: 4 HD-TVI camera inputs and up to 4 IP camera inputs
- Video Resolution: Up to 1080p for HD-TVI and IP cameras
- Video Compression: H.264 and H.265
- Storage: 1 x 2.5-inch HDD/SSD bay; manufacturer datasheet specifies a pre-installed 1TB HDD, so the SSD description should be verified before listing
- Expansion Storage: Supports storage media up to 2TB and SD cards up to 256GB
- Positioning: Built-in GPS and GLONASS support
- Vehicle Inputs: 9–32V DC
- Power Consumption: Standby ≤0.5W; full load ≤45W
- Operating Temperature: -10°C to +60°C; -30°C to +60°C with heated dummy HDD configuration
- Humidity: 10–95% relative humidity, non-condensing
- Interfaces: Ethernet, USB, RS-232, RS-422, alarm inputs and relay outputs
- Operating Method: Mouse, IR remote control, web control and touchscreen
- Manufacturer Reference: Hikvision identifies the DS-MP5604(1T) as a mobile recorder supporting four HD-TVI cameras, four IP cameras, vehicle battery protection, power-off protection and built-in GPS. ([us-legacy.hikvision.com](https://us-legacy.hikvision.com/en/products/video-recorders/digital-video-recorder/mobile-digital-video-recorder/mobile-video-recorder?utm_source=openai))
- Dimensions (H x L x W): 60.1mm x 225.4mm x 206mm
- Weight: 1.7 kg
Key Features
- Four-channel mobile video recording for in-vehicle surveillance
- Supports HD-TVI and IP camera inputs
- H.264/H.265 encoding for efficient video storage
- Built-in GPS and GLONASS positioning
- Vehicle battery protection and power-off protection
- Wide 9–32V DC input suitable for vehicle electrical systems
- Shutdown delay and scheduled start-up/shutdown functions
- Compact fanless enclosure for mobile installations
- SD card and removable HDD/SSD storage support
Professional Installation Requirements
- Installation should be performed by a suitably qualified vehicle-electronics or security installer. Vehicle wiring, fusing, grounding and mounting must follow the manufacturer’s instructions and applicable Australian vehicle electrical requirements. If connected to mains-style vehicle electrical equipment, installation must be completed by a licensed electrician in accordance with applicable regulations.
Applications
- Mobile CCTV surveillance in commercial vehicles
- Bus, coach and school-bus video recording
- Taxi and rideshare vehicle monitoring
- Truck and fleet security systems
- Public transport and logistics vehicle monitoring
- Vehicle incident recording and fleet management
Standards & Compliance
- AS/NZS 62676.1.1:2020 — applicable reference for video surveillance system requirements; product-specific certification was not verified. ([hsenode.com](https://www.hsenode.com/NewSamples/AS/125266347/AS-NZS-62676.1.1-2020-1.pdf?utm_source=openai))
- AS/NZS 62676.1.2:2020 — applicable reference for video surveillance system performance requirements; product-specific certification was not verified. ([hsenode.com](https://www.hsenode.com/NewSamples/AS/137544248/AS-NZS-62676.1.2-2020-1.pdf?utm_source=openai))
- AS/NZS 3001 — applicable to mains-style electrical installations in vehicles where relevant; not a product certification claim. ([transport.vic.gov.au](https://transport.vic.gov.au/road-and-active-transport/registration-and-licensing/registration/standard-and-non-standard-vehicle-information/vehicle-standards-information/conversion-of-vehicles-to-motorhomes?utm_source=openai))
Environmental Benefits
- Digital video recording avoids consumable tape media and supports electronic evidence storage
- Vehicle battery protection and low standby power consumption can reduce unnecessary energy draw
- Power-off protection helps reduce data loss and associated replacement or re-recording requirements
- Fanless construction can reduce mechanical wear and extend service life
Warranty Information
Hikvision Australia’s RMA policy lists a 36-month default warranty for applicable DVR product lines, calculated from the shipment date according to the product serial number. Confirm eligibility and regional coverage with the authorised Australian distributor. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/marketing-material/rma/Hikvision-RMA-Policy-V6.0.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security, CCTV and vehicle-surveillance distributors. Confirm regional stock and the supplied storage type before purchase.
