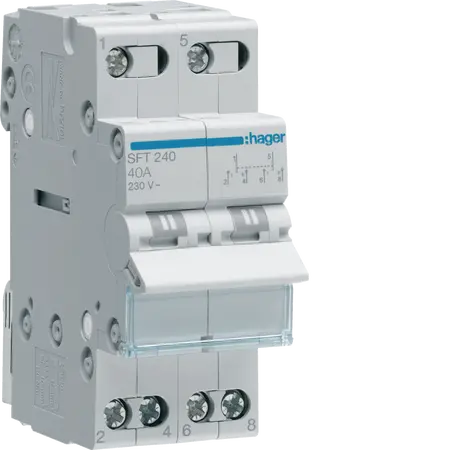

Modular Changeover Switch 2-Pole 40A | Centre Off | Top Common Point by Hager
Modular changeover switch with 2-pole, 40A capacity and centre off design—ideal for residential, commercial, and industrial applications. Built for reliable source alternation, with compact modular design and high ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2-pole, 40A Centre Off Modular Changeover Switch with Top Common Point
Brand: Hager
SKU: SFT240
Alternatively Known As: Modular Changeover Switch
Technical Specifications
- Number of poles: 2
- Neutral position: Without neutral
- Type of pole: 2P
- Rated current: 40 A
- Breaking capacity 400 V AC23A: 846 A
- Rated conditional short-circuit current Icc with gl-gG fuses: 0.60 kA
- Acceptable current rating AC21 category A: 40 A
- Acceptable current rating AC21 category B: 40 A
- Acceptable current rating AC22 category A: 40 A
- Acceptable current rating AC22 category B: 40 A
- Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-3: 0.48 kA
- Rated short-time withstand current Icw 1s IEC 60947: 0.60 kA
- Nominal tightening torque: 1.80 Nm
- Type of bottom connection for modular devices: Screw terminal
- Rated operational voltage Ue: 230 V
- Type voltage supply: AC
- Rated insulation voltage Ui: 440 V
- Rated impulse withstand voltage Uimp: 4000 V
- Number of modules: 2
- Ingress Protection (IP) class: IP20
- Frequency: 50 - 60 Hz
- Height: 83 mm
- Width: 35 mm
- Depth: 70 mm
- Number of NO contacts: 0
- Number of NC contacts: 0
- Operating temperature: -20 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Cross-section flexible conductor: 1.5 - 10 mm²
- Cross-section rigid conductor: 1.5 - 16 mm²
- Number of mechanical operations: 200000
- Electrical durability at nominal load in AC21 in operating cycles: 25000
- Electrical durability at nominal load in AC22 in operating cycles: 25000
- Total power loss under IN: 4.20 W
- Power loss per pole at In: 2.10 W
- Down connection alignment for modular devices: Shifted terminal
- Top connection alignment for modular devices: Shifted terminal
- Dimensions (H x L x W): 83mm x 70mm x 35mm
- Weight: 0.2 kg
Key Features
- Centre Off switch design for versatile application
- Robust cutting performance and reliable operation
- Compact size with modular design
- High ingress protection rating for enhanced safety
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure safety and compliance with standards.
Applications
- Suitable for residential, commercial, and industrial switching applications requiring reliable source alternation.
Standards & Compliance
- Compliant with AS/NZS 60947 standards for low-voltage switchgear and controlgear.
Environmental Benefits
- Designed to meet rigorous international safety standards, reducing potential electrical hazards.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager 2-pole, 40A Centre Off Modular Changeover Switch with Top Common Point is available for immediate purchase. Ideal for installations requiring a reliable and safe switching solution.
