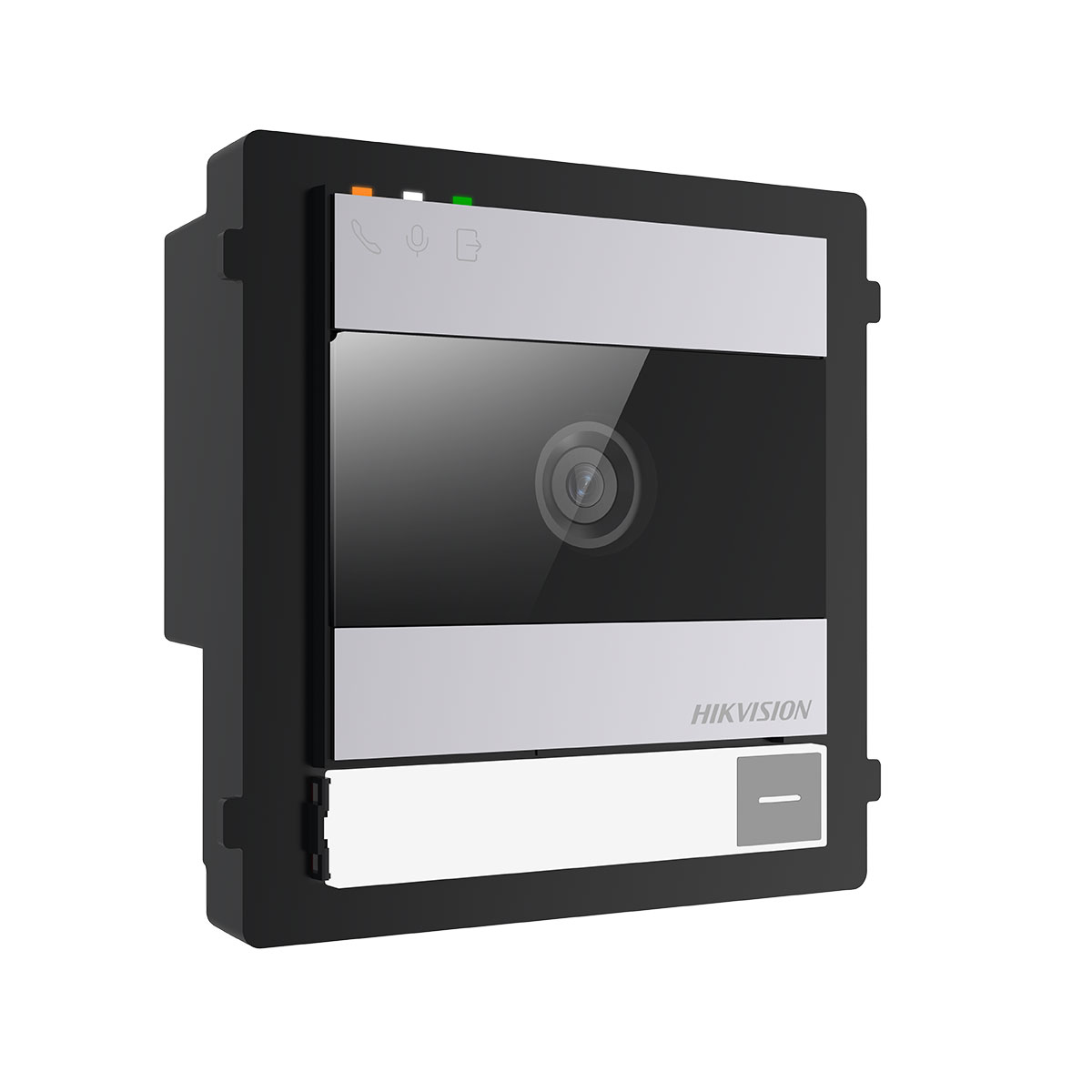

Modular Door Station 5MP Aluminium Hikvision
Hikvision modular door station features 5MP resolution and aluminium construction. Ideal for video intercom installs at building entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 5MP Modular Door Station, Hikvision KD8 IP Video Intercom Main Module, Hikvision DS-KD8005-IME1
Technical Specifications
- Model: DS-KD8005-IME1
- Camera Resolution: 5 MP, 3200 x 1800
- Field of View: Horizontal 134°, vertical 82°
- Video Compression: H.264, H.265 and MJPEG
- Wide Dynamic Range: 100 dB WDR
- Audio: Built-in omnidirectional microphone and loudspeaker
- Network Interface: 1 x RJ45, 10/100 Mbps self-adaptive
- Network Protocols: TCP/IP, RTSP, RTP, SIP and ONVIF
- Lock Control: 2 relays, maximum 30 VDC and 2 A
- Call Buttons: Configurable for 0, 1 or 2 buttons
- Power Supply: 12 VDC, 1.5 A or IEEE 802.3af standard PoE
- Power Consumption: Maximum 5 W
- Protection Rating: IP65 and IK08
- Operating Temperature: -40°C to +60°C
- Installation: Surface or flush mounting
- Material: Aluminium
- Dimensions (H x L x W): 98.5mm x 99.5mm x 34.7mm
- Weight: 0.26 kg
Key Features
- 5MP camera for high-resolution video intercom
- Modular KD8 design for integration with compatible Hikvision modules
- Standard IEEE 802.3af PoE support
- IP65 weather resistance for outdoor installations
- IK08 impact protection
- 100 dB wide dynamic range and IR supplementary lighting
- Two-lock control for entry and gate applications
- Noise suppression and echo cancellation
- Supports up to 2,000 users and 1,000 linked indoor stations
- Remote web configuration
Professional Installation Requirements
- Installation should be completed by a suitably qualified security, access-control or communications installer. Configure PoE, network, door contacts, exit buttons and lock-control wiring in accordance with the manufacturer’s instructions and applicable Australian electrical and communications requirements.
Applications
- Apartment and multi-residential building entrances
- Commercial building access control
- Office and commercial property video intercom systems
- Gated developments and residential estates
- Outdoor visitor communication and door-release systems
Standards & Compliance
- AS/NZS 62676.1.1:2020 - relevant to video surveillance functions used in security applications
Environmental Benefits
- Aluminium housing is durable and recyclable at end of service life
- RoHS compliance supports restriction of hazardous substances in the product
- PoE operation can reduce the need for separate power cabling and power supplies
- Durable IP65 and IK08 construction can extend service life and reduce replacement waste
Warranty Information
Two-year limited warranty is listed for the DS-KD8005-IME1 by an authorised Hikvision distribution channel. Warranty support is subject to purchase through an authorised distributor and the applicable Hikvision Australia terms.
Available Now
Available through Hikvision and authorised Australian security, access-control and communications distributors.
