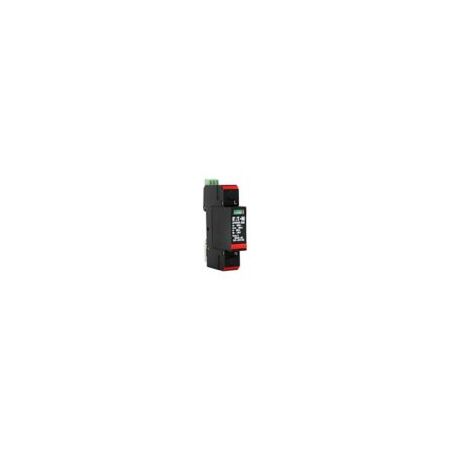

Modular Surge Diverter 60kA | Single-Phase | DIN Rail Mount | Class 2 Protection by Eaton
Protect your electrical systems with this modular surge diverter, featuring a 60kA fault current capacity and single-phase connection—ideal for point of entry protection. Built for professional installation, it ensures compliance with safety standards while extending equipment lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modular Surge Diverter 60kA | Single-Phase | DIN Rail Mount | Class 2 Protection by Eaton
Brand: Eaton
SKU: SPDV60-300
Alternatively Known As: Eaton Surge Protection Device, Modular Surge Protector, DIN Rail Surge Diverter
Technical Specifications
- Fault current: 60 kA
- Connection: Single-phase
- Phase: Single-phase
- Class: Class 2 Cat C, Class 2 Cat B
- Mounting Method: DIN rail 35 mm
- Configuration: Diverter
- Maximum continuous operating voltage: 300 V
- Maximum discharge current 8x20µs (Imax): 60 kA
- Nominal discharge current 8x20µs (In): 30 kA
- Dimensions (H x L x W): 90mm x 68mm x 17mm
- Weight: 0.1 kg
Key Features
- Single-phase connection
- 60 kA fault current capacity
- Class 2 Cat C and Class 2 Cat B protection
- Modular design for DIN rail 35 mm mounting
- 1 mode surge diverter
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Point of entry protection for electrical systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical equipment from surge damage, reducing electronic waste and extending equipment lifespan
Warranty Information
Warranty information available upon request from manufacturer.
Available Now
The Eaton 1Ph 60kA 1 Mode DIN Modular Surge Diverter is available now for immediate purchase. Ideal for protecting electrical systems at the point of entry.
