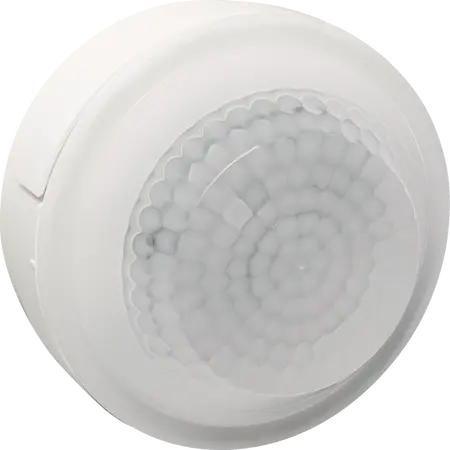

Motion detector highbay 360° surface mounted NO contact detection height 8m

Motion Detector Highbay 360° | Surface Mounted | Adjustable Brightness | Hager

BRAND: :hager

SKU: EER518

$156.50 List price: $200.20

+ −

30 Days Return Delivery Options

Motion detector highbay with 360° coverage and adjustable brightness—ideal for warehouses and offices. Built for energy efficiency, with surface mounting and customizable time delay settings.

Description
Attachments

Product Name/Title: Motion detector highbay 360° surface mounted NO contact detection height 8m

Brand: Hager

SKU: EER518

Alternatively Known As: 360° Motion Sensor, Highbay Motion Detector, Surface Mounted Motion Detector

Technical Specifications

Detection angle: 360°
Type of sensor: Movement detector
Time delay: 1 min - 1 h
Lighting response brightness adjustable: 5 - 2000 lx
Frequency: 50 - 60 Hz
Operating temperature: -5 - 45 °C
Material: Plastic
Ingress Protection (IP) class: IP41
Mounting: Surface mounting
Dimensions (H x L x W): 78mm x 150mm x 150mm
Weight: 1.5 kg

Key Features

360° detection angle for comprehensive coverage.
Adjustable time delay settings from 1 minute to 1 hour.
Brightness response adjustable from 5 to 2000 lux.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Warehouses, factories, and large retail spaces
Commercial: Offices and public buildings requiring motion detection

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Designed to reduce energy consumption by ensuring lights are only on when needed.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager Motion Detector Highbay 360° Surface Mounted is available now for immediate purchase. Ideal for industrial and commercial applications.

EER518 (EER518, 140 Kb) [Download]

(PEP_HAGER_HAGE-00689-V01.01-EN_07062022.pdf, 206 Kb) [Download]

reach_declaration_EER518.pdf (reach_declaration_EER518.pdf, 103 Kb) [Download]

rohs_declaration_EER518.pdf (rohs_declaration_EER518.pdf, 104 Kb) [Download]

EER518__MOTION-DETECTOR-HIGHBAY__EN-IT__2022-03__MANUAL.pdf (EER518__MOTION-DETECTOR-HIGHBAY__EN-IT__2022-03__MANUAL.pdf, 1,095 Kb) [Download]

EUDOC_0041.06-2022.pdf (EUDOC_0041.06-2022.pdf, 115 Kb) [Download]
