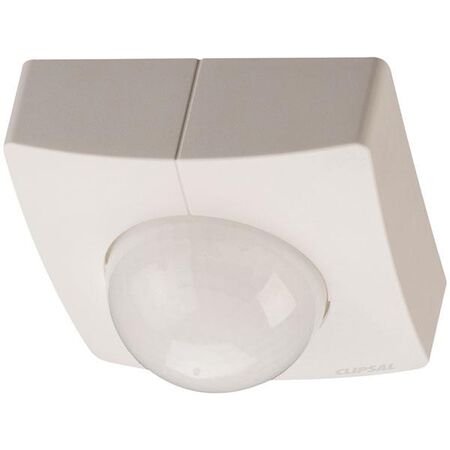

PIR Motion Sensor 360 Degree 240V IP54 White Clipsal
This Clipsal PIR motion sensor covers a full 360° angle of detection with a 12m radius sensing range, suited to indoor and outdoor lighting and security automation. It supports a maximum incandescent load of 2400W and is rated IP54 for durability in both indoor and outdoor installations. The 3-wire surface mount design suits commercial and residential applications alike. The sensor complies with AS/NZS 3000 Wiring Rules for electrical installation. Full specifications are listed further down the page.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

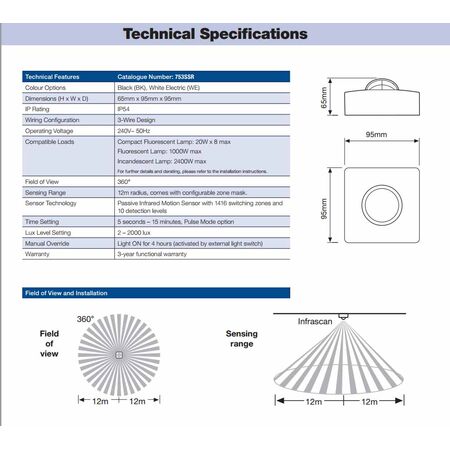

Technical Specifications
- Angle of detection: 360°
- Sensing range: 12m radius / 24m diameter
- Max incandescent lamp load: 2400 W
- Max fluorescent lamp load: 1000 VA
- Nominal voltage: 240 V AC
- Rated power: 2400 W
- Response value luminosity: 2000 lx
- IP Rating: IP54
- Wiring system: 3 wire
- Mounting method: Surface mount
- Dimensions (H x L x W): 65 mm x 95 mm x 95 mm
- Weight: 0.3 kg
Key Features
- 360° angle of detection
- Large sensing range: 12m radius / 24m diameter
- Advanced resolution for detection of small movements
- IP54 rated for indoor and outdoor installations
- Surface mount design
- 3 wire wiring system
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct wiring and compliance with electrical standards.
Applications
- Indoor and outdoor security and lighting automation
- Commercial and residential motion detection
- Energy-saving lighting control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps reduce energy consumption by automating lighting based on occupancy
- IP54 rating ensures durability and longevity, reducing waste
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal Infrared Motion Sensor is available now for immediate purchase. Ideal for enhancing security and energy efficiency in residential and commercial environments.
FAQ
Q: What is the detection range and angle of this sensor?
A: It offers a full 360° angle of detection with a 12m radius sensing range, suited to both indoor and outdoor use.
Q: What is the maximum load this sensor supports?
A: It supports a maximum incandescent lamp load of 2400W and a maximum fluorescent load of 1000VA, backed by a 2-year warranty.
