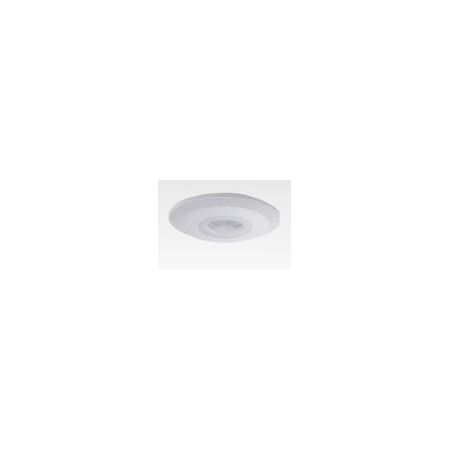

Infrared Motion Sensor 360 Degree 6m IP20 White Crown Lighting
This ultrathin 360° infrared motion sensor from Crown Lighting offers surface mount installation with a maximum detection distance of 6 metres, suited to homes, offices, and warehouses. It's IP20 rated with a slim 80mm x 40mm x 80mm profile, adjustable time delay from 10 seconds to 15 minutes and 2 seconds, and ambient light sensitivity from under 3 to 2000 lux. Compatible with LED lighting and fitted with a manual override function for flexible control. Check the product details and compatible accessories below before ordering.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Input Voltage: 220V-240V
- Detection Range: 360 degrees
- Installation Height: 2.2m to 4.0m
- Detection Motion Speed: 0.6 to 1.5 m/s
- Detection Distance: Maximum 6 meters
- Time Delay: Minimum 10 seconds + 3 seconds, Maximum 15 minutes + 2 minutes
- Ambient Light Sensitivity: Adjustable from <3 to 2000 LUX
- Wiring: 3 wires
- Dimensions (H x L x W): 80mm x 40mm x 80mm
- Weight: 0.2 kg
Key Features
- Surface mounted design for easy installation
- 360° detection range for comprehensive motion sensing
- Manual override function for user control
- Compatible with LED lighting
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Residential: Lighting automation in homes
- Commercial: Office and retail lighting control
- Industrial: Energy saving in warehouses and factories
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on occupancy
- Supports LED lighting which is energy efficient
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Infrared Motion Sensor with 360° Detection and Surface Mount is available now for immediate purchase. Ideal for energy-efficient lighting control in residential, commercial, and industrial applications.
FAQ
Q: What is the detection range and coverage of this sensor?
A: It provides 360° detection with a maximum distance of 6 metres, suited to indoor lighting control.
Q: Is this sensor suitable for industrial or warehouse use?
A: Yes, it's designed for energy-saving lighting automation in homes, offices, and warehouses.
An infrared motion sensor 180 degree model with a 12m range suits directional coverage instead of full 360°.
An infrared motion sensor 360 degree IP44 rated variant offers similar coverage with added weather resistance.
An infrared sensor surface mount 360 degree unit provides a comparable ceiling-mounted alternative.
