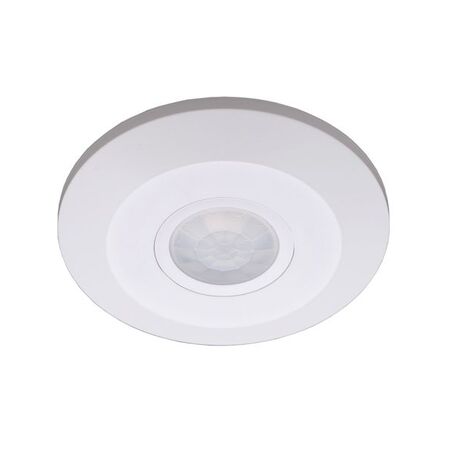

Motion Sensor Infrared 3 Wire 2000W Round White IP20 CLA Lighting

BRAND: CLA Lighting
SKU: SENS004
$32.20 List price: $42.90
+ −
30 Days Return Electricians Unlock Trade Access
CLA Lighting motion sensor features infrared detection, 3 wire 2000W switching and a round white IP20 body. Ideal for automatic indoor lighting control.

Alternatively Known As: CLA SENS004 Motion Sensor, Infrared Motion Sensor

Technical Specifications
  • Input Voltage: 220-240V 50/60Hz
  • Rated Load: 2000W HAL/1000W CFL/1000W LED
  • Detection Range: 360°
  • Detection Distance: 6m max (<24°C)
  • Detection Motion Speed: 0.6-1.5m/s
  • Time Delay: min.10sec±3sec; max.15min±2min
  • Ambient Light: <3-2000lux adjustable
  • Installation Height: 2.2-4m

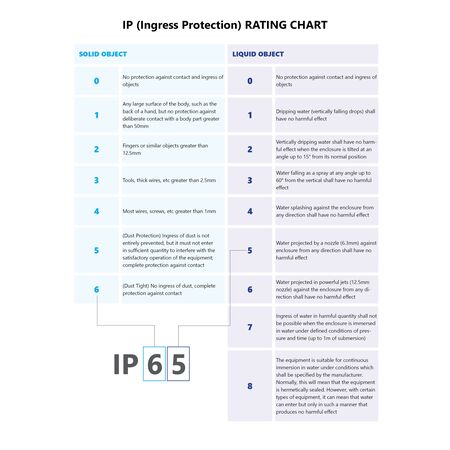

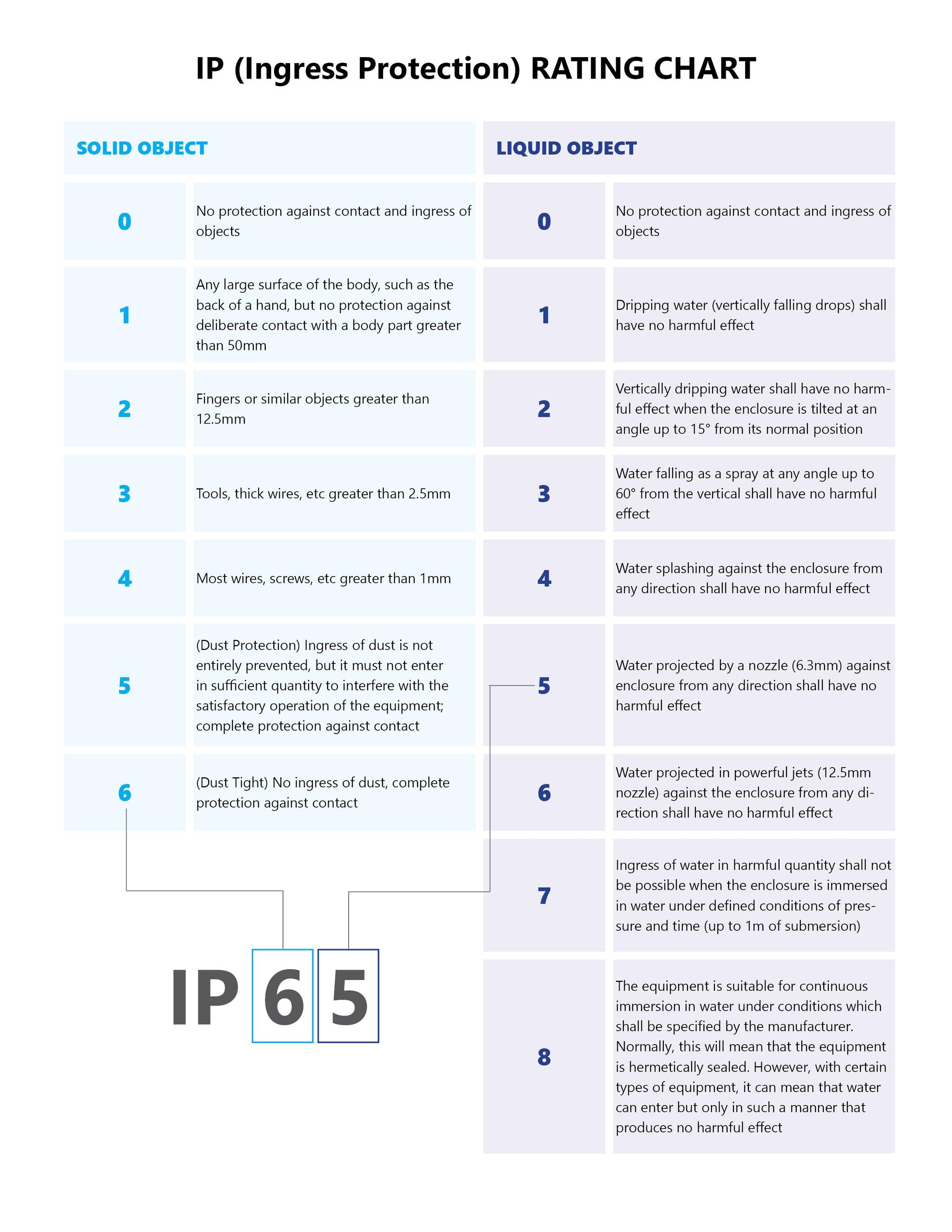

  • IP Rating: IP20
  • Housing Material: PC
  • UV Resistant: Yes

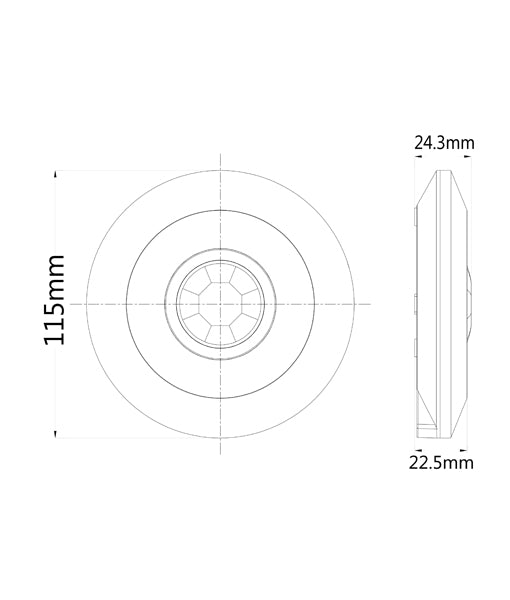

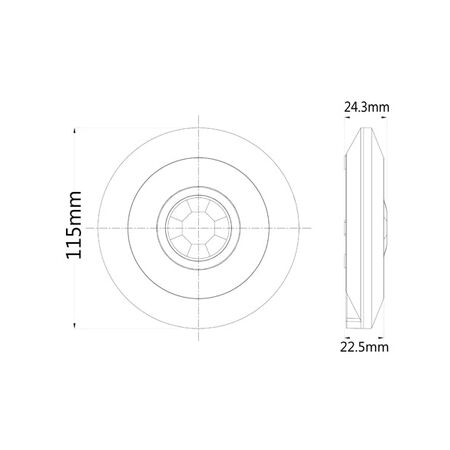

  • Dimensions (H x L x W): 50mm x 95mm x 95mm
  • Weight: 0.2 kg
Key Features
  • Infrared motion detection for automatic lighting control
  • 360° detection range
  • Large detection distance of up to 6 metres
  • Compatible with LEDs and other lighting types
  • Adjustable time delay and ambient light settings
  • Surface-mounted and UV resistant
Applications
  • Indoor automatic lighting control
  • Energy-efficient lighting in offices and homes
  • Enhancing security by activating lights upon motion
Standards & Compliance
  • AS/NZS 60335
Environmental Benefits
  • Energy-efficient lighting control
  • Compatible with LED lighting reducing energy usage
Warranty Information

5 year replacement warranty

Available Now

Available through Aspen Pumps and authorised Australian distributors.
