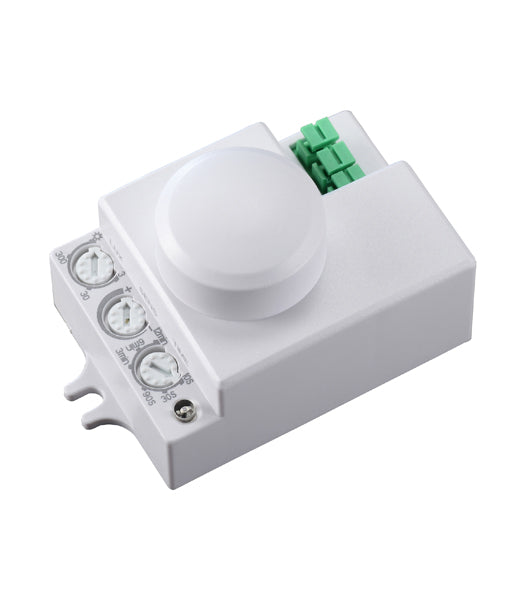

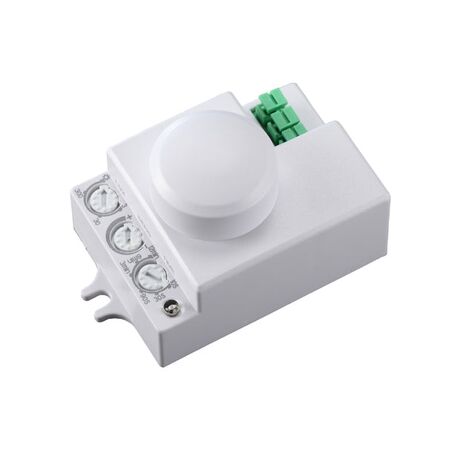

Motion Sensor Inline Microwave 1200W White IP20 CLA Lighting

BRAND: CLA Lighting
SKU: SENS011
$37.30 List price: $49.70
+ −
30 Days Return Electricians Unlock Trade Access
CLA Lighting inline motion sensor features microwave detection, 1200W switching and a white IP20 body. Ideal for concealed automatic lighting control.

Alternatively Known As: Microwave Motion Sensor, CLA Lighting Sensor, Inline Motion Detector

Technical Specifications
  • Input Voltage: 220-240V AC 50Hz
  • Detection Range: 360°
  • Detection Distance: 1-8m radius, adjustable
  • Detection Motion Speed: 0.6-1.5m/s
  • Rated Load: 1200W HAL/300W CFL/300W LED
  • Hold Time: Min.10 sec ± 3 sec; Max.12 min ± 1 min
  • HF System: 5.8GHz CW radar, ISM band
  • Ambient Light: <3-2000LUX, adjustable
  • Ambient Temperature: -20 to 50°C
  • Power Consumption: 0.9W
  • Installation Height: 2-6m
  • Housing Material: PC

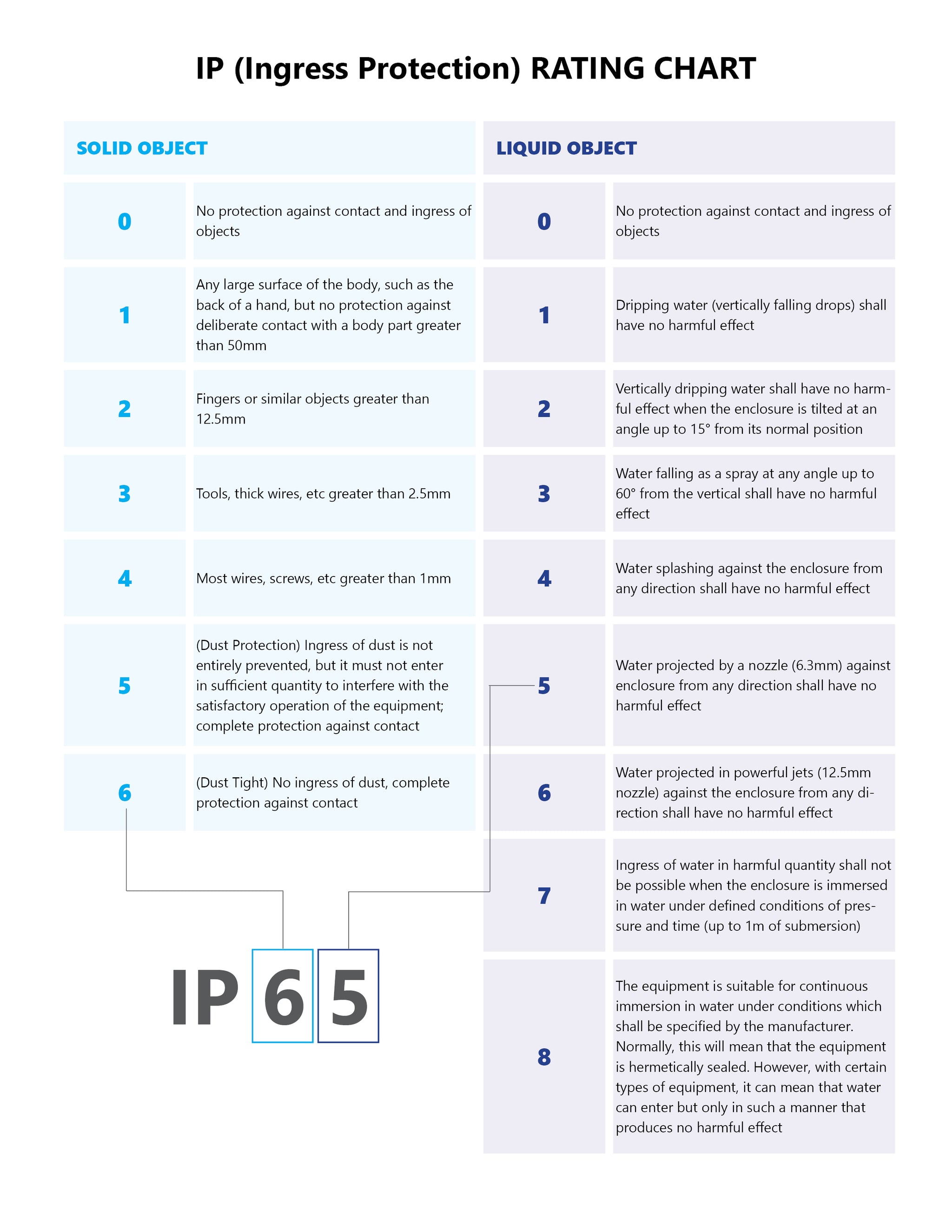

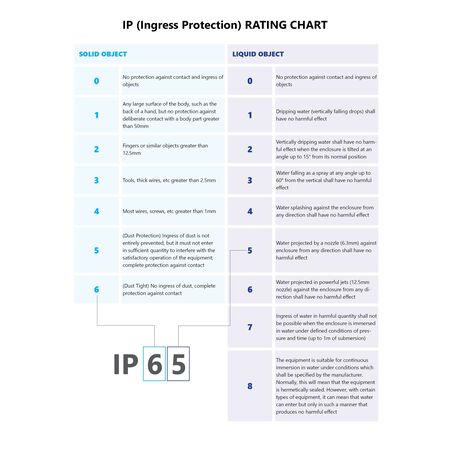

  • IP Rating: IP20
  • UV Resistant: Yes
  • Manual Override: No

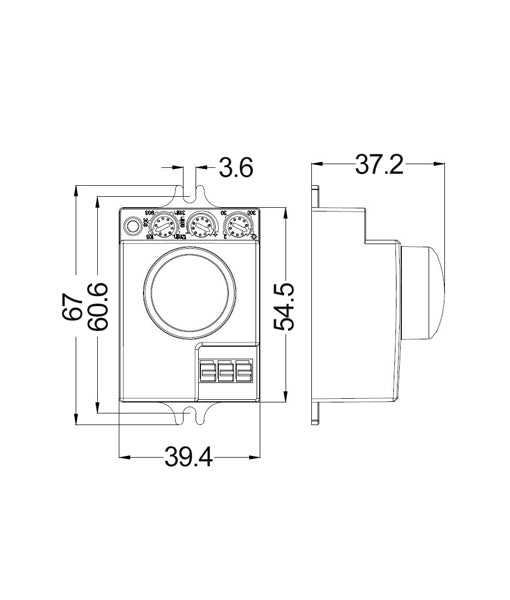

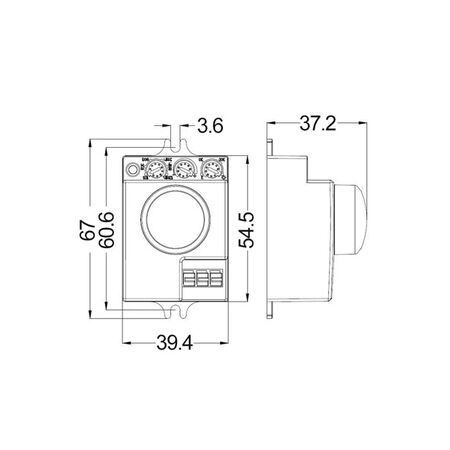

  • Dimensions (H x L x W): 50mm x 100mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Microwave detection for efficient motion sensing
  • Supports a wide range of lighting loads
  • Adjustable detection distance and ambient light settings
  • UV resistant white PC housing
  • 5.8GHz CW radar in ISM band
  • No manual override for optimal automatic operation
Professional Installation Requirements
  • Installation must be performed inside a light fixture; ensure no obstruction by metal as it impairs sensor function.
Applications
  • Automatic lighting control in residential and commercial settings
  • Concealed installation inside fittings for aesthetic lighting solutions
Standards & Compliance
  • AS/NZS 3820
Environmental Benefits
  • Energy-saving through automated lighting control
Warranty Information

5-year replacement warranty

Available Now

Available through Aspen Pumps and authorised Australian distributors.
