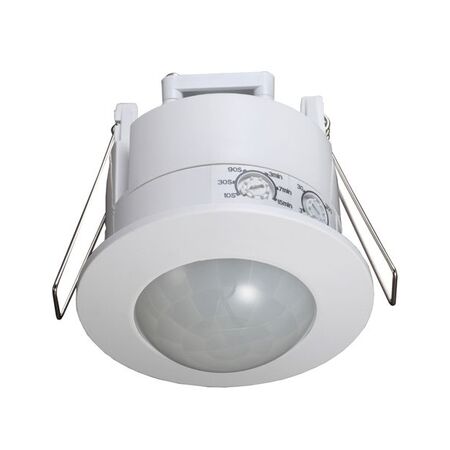

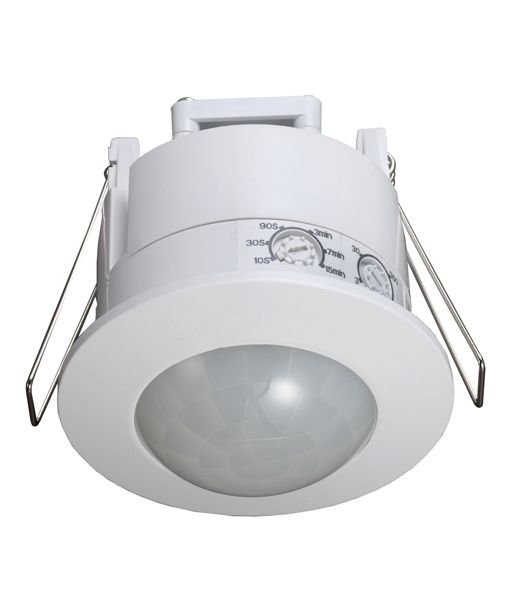

Motion Sensor Recessed 3 Wire 1200W White IP20 CLA Lighting

BRAND: CLA Lighting
SKU: SENS003
$27.60 List price: $36.80
+ −
30 Days Return Electricians Unlock Trade Access
CLA Lighting recessed motion sensor features infrared detection, 3 wire 1200W switching and a round white IP20 trim. Ideal for discreet lighting control.

Alternatively Known As: CLA SENS003, Infrared Motion Sensor, Recessed Motion Detector

Technical Specifications
  • Input Voltage: 220-240V 50/60Hz
  • Rated Load: 1200W HAL/300W CFL/300W LED
  • Detection Range: 360°
  • Detection Distance: 6m max (<24°C)
  • Detection Motion Speed: 0.6-1.5m/s
  • Time Delay: min.10sec±3sec; max.15min±2min
  • Ambient Light: <3-2000lux (adjustable)
  • Installation Height: 2.2-4m

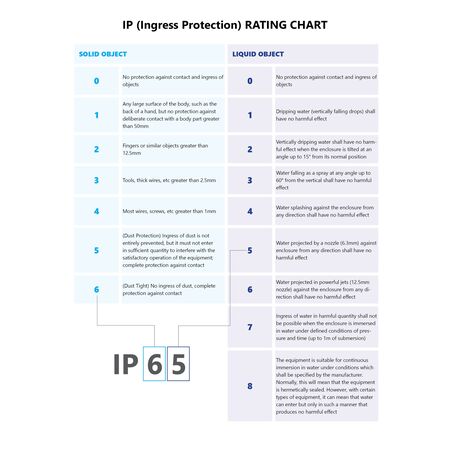

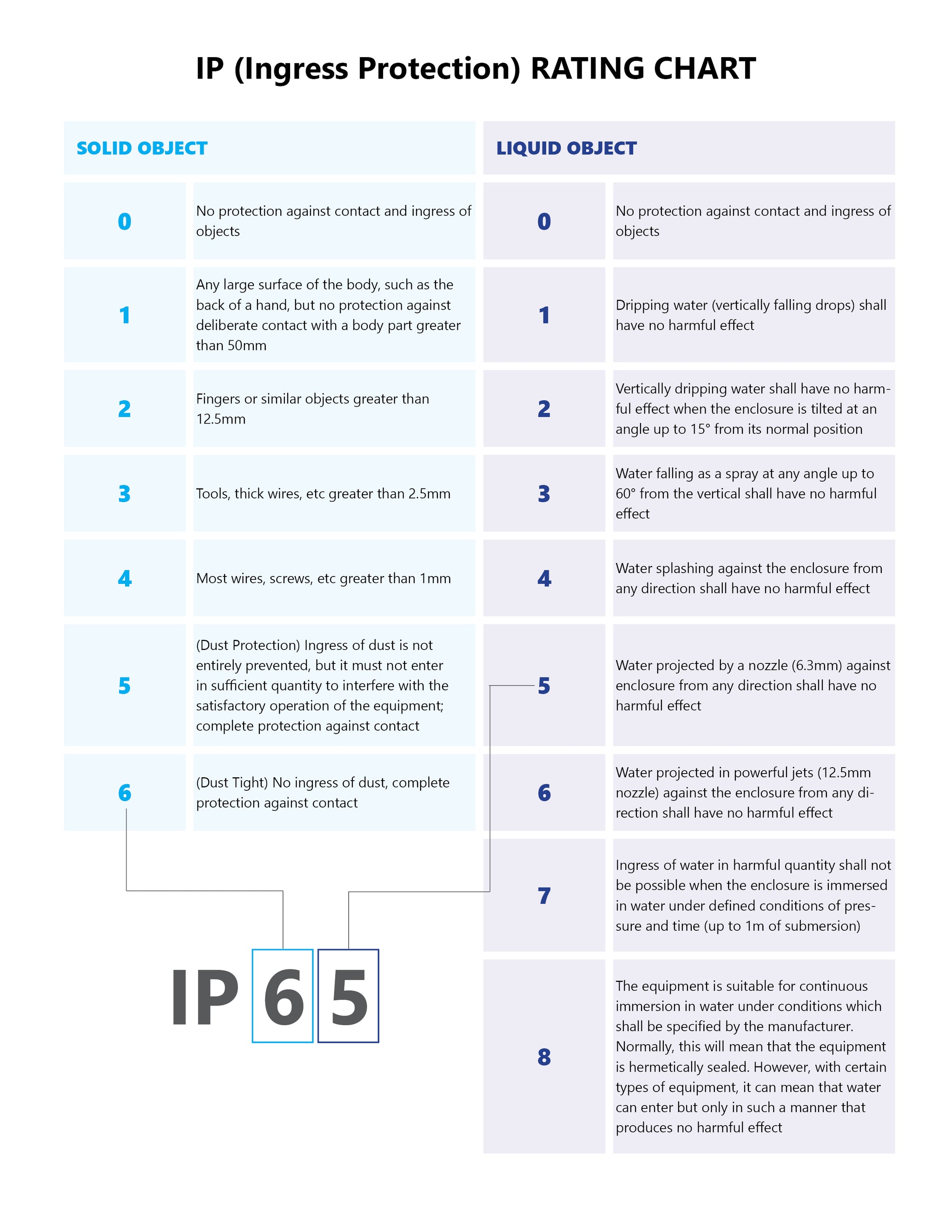

  • IP Rating: IP20
  • Housing: PC
  • UV Resistant
  • 3-Wire Connection

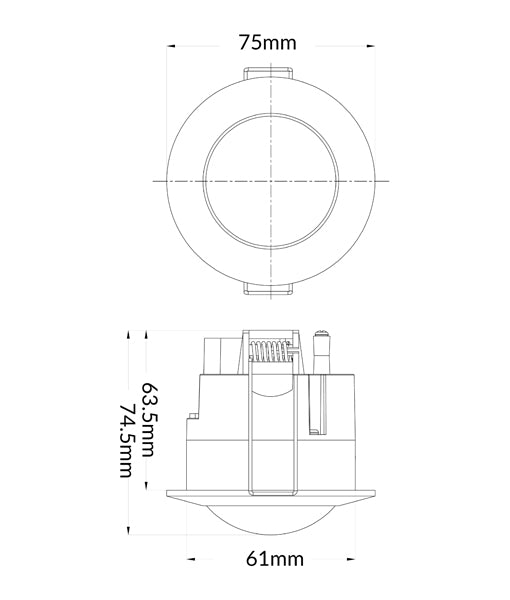

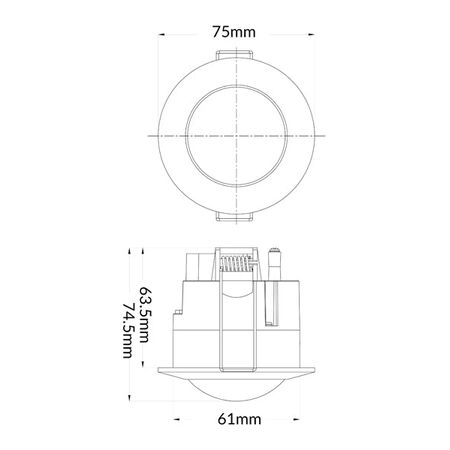

  • Dimensions (H x L x W): 50mm x 90mm x 90mm
  • Weight: 0.2 kg
Key Features
  • Infrared detection technology
  • 360° detection range
  • Adjustable ambient light sensor (<3-2000lux)
  • UV-resistant housing
  • Suitable for use with LED lighting
Professional Installation Requirements
  • Installation by a licensed electrician recommended to ensure compliance with Australian electrical standards.
Applications
  • Discreet lighting control in residential buildings
  • Commercial lighting automation
  • Energy-efficient lighting management
Environmental Benefits
  • Compatible with energy-efficient LED lighting
  • Extended product lifespan through quality construction
Warranty Information

5 year replacement warranty

Available Now

Available through Aspen Pumps and authorised Australian distributors.
