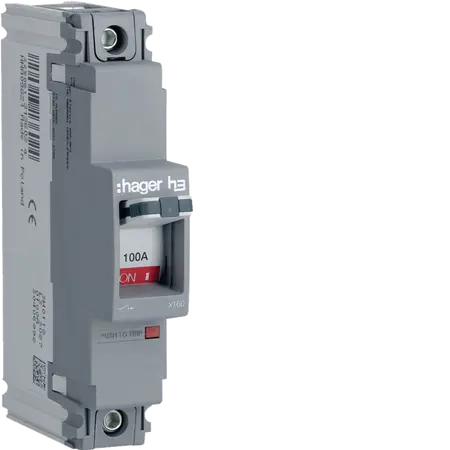

Moulded Case Circuit Breaker 100A 1P 25kA x160 Frame IP4X Grey Hager
Hager x160 MCCB features 100A, 1-pole and 25kA breaking capacity. Suited to commercial and industrial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu: 25 kA
- Rated service breaking capacity Ics: 20 kA
- Number of poles: 1
- Frequency: 50 - 60 Hz
- Rated impulse withstand voltage Uimp: 8000 V
- Rated insulation voltage Ui: 690 V
- Total power loss under IN: 8.40 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000 cycles
- Nominal tightening torque: 6 - 6 Nm
- Type of connection: Screw terminal
- Dimensions (H x L x W): 150mm x 100mm x 100mm
- Weight: 1.5 kg
Key Features
- Rated current of 100 A with a breaking capacity of 25 kA.
- Fast tripping response time of 10 ms.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for energy efficiency, reducing electrical waste and enhancing safety.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker X160 1P 25kA 100A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
