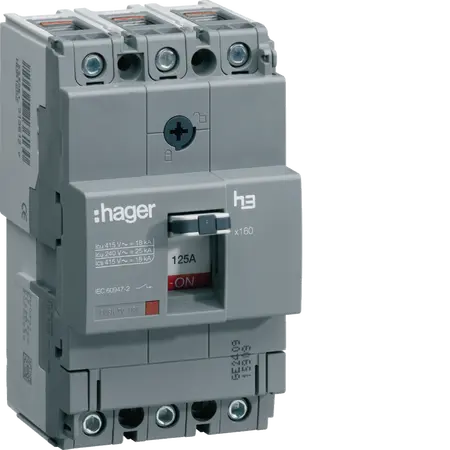

Moulded Case Circuit Breaker 125A 3P 40kA x160 Frame IP4X Grey Hager
Hager x160 MCCB features 125A, 3-pole and 40kA breaking capacity. Suited to commercial and industrial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 40 kA
- Rated service breaking capacity Ics under 400 V AC: 20 kA
- Number of poles: 3
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 690 V
- Rated operational voltage Ue: 220 - 415 V
- Total power loss under IN: 33 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000
- Dimensions (H x L x W): 130mm x 68mm x 75mm
- Weight: 1.5 kg
Key Features
- Rated current of 125 A with a breaking capacity of 40 kA under 400 V AC.
- IP4X ingress protection for enhanced safety.
- Screw terminal connections for reliable connectivity.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in office buildings
- Residential: Main electrical panels in homes
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 125A 40kA CTC is available now for immediate purchase. Ideal for industrial, commercial, and residential electrical systems.
