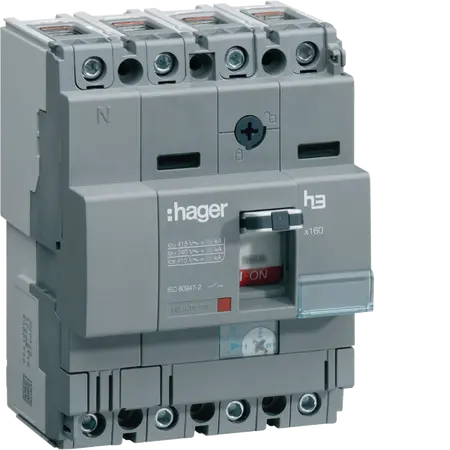

Moulded Case Circuit Breaker 160A 4P 40kA x160 Frame IP4X Grey Hager
Hager x160 MCCB features 160A, 4-pole and 40kA breaking capacity. Suited to commercial and industrial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 160 A
- Short-circuit breaking capacity Icu under 400 V AC: 40 kA
- Short-circuit breaking capacity Icu under 240 V AC: 85 kA
- Number of poles: 4
- Frequency: 50 - 60 Hz
- Rated impulse withstand voltage Uimp: 8000 V
- Rated insulation voltage Ui: 690 V
- Rated operational voltage Ue: 220 - 415 V
- Total power loss under IN: 43.80 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000
- Ingress Protection (IP) class: IP4X
- Cross-section flexible conductor: 4 - 70 mm²
- Cross-section rigid conductor: 4 - 95 mm²
- Nominal tightening torque: 6 - 6 Nm
- Dimensions (H x L x W): 100mm x 150mm x 200mm
- Weight: 5 kg
Key Features
- Rated current of 160 A with a short-circuit breaking capacity of 40 kA.
- Four poles for versatile applications.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in factories and manufacturing plants
- Commercial: Electrical protection in office buildings and retail spaces
- Residential: Main electrical supply protection in homes
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Designed for energy efficiency, reducing overall power loss.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker x160 4P 40kA 160A is available now for immediate purchase. Ideal for industrial, commercial, and residential electrical protection.
