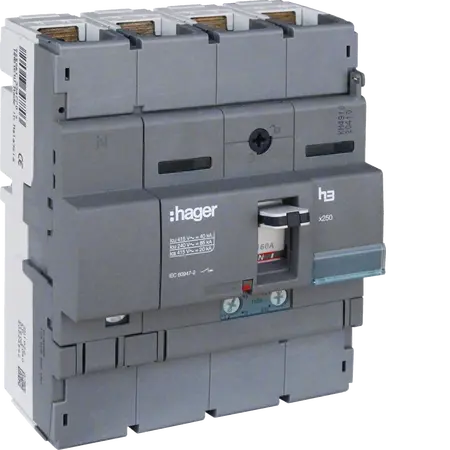

Moulded Case Circuit Breaker 160A 4P 40kA x250 Frame IP4X Grey Hager
Hager x160 MCCB features 160A and 40kA breaking capacity. Suited to commercial and industrial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 40 kA
- Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 85 kA
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 800 V
- Rated operational voltage Ue: 220 - 415 V
- Ingress Protection (IP) class: IP4X
- Total power loss under IN: 32.60 W
- Electric endurance in number of cycles: 1000
- Mechanical operations: 4000
- Dimensions (H x L x W): 100mm x 150mm x 200mm
- Weight: 5 kg
Key Features
- Rated current of 160 A with a short-circuit breaking capacity of 40 kA.
- Fixed built-in construction with a toggle control element.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in office buildings
- Residential: Main electrical panels in homes
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker X250 4P 40kA 160A TM is available now for immediate purchase. Ideal for industrial, commercial, and residential electrical systems.
