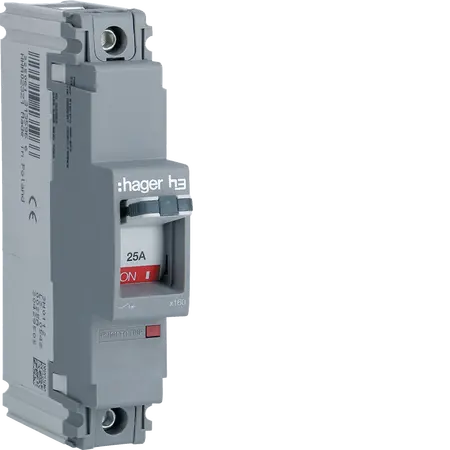

Moulded Case Circuit Breaker 25A 1P 25kA x160 Frame IP4X Grey Hager
Hager x160 MCCB features 25A, 1-pole and 25kA breaking capacity. Suited to commercial and industrial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 25 A
- Rated ultimate short-circuit breaking capacity: 25 kA
- Rated service breaking capacity: 20 kA
- Number of poles: 1
- Response time when opening: 10 ms
- Frequency: 50 - 60 Hz
- Rated impulse withstand voltage: 8000 V
- Rated insulation voltage: 690 V
- Total power loss under IN: 4.30 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000
- Ingress Protection (IP) class: IP4X
- Connection: Screw terminal for flexible conductor 4 - 70 mm², rigid conductor 4 - 95 mm²
- Nominal tightening torque: 6 - 6 Nm
- Dimensions (H x L x W): 80mm x 120mm x 100mm
- Weight: 1.5 kg
Key Features
- Rated current of 25A with a breaking capacity of 25kA.
- Fast tripping response time of 10 ms.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Designed for energy efficiency, reducing electrical waste and enhancing safety.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker X160 1P 25kA 25A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
