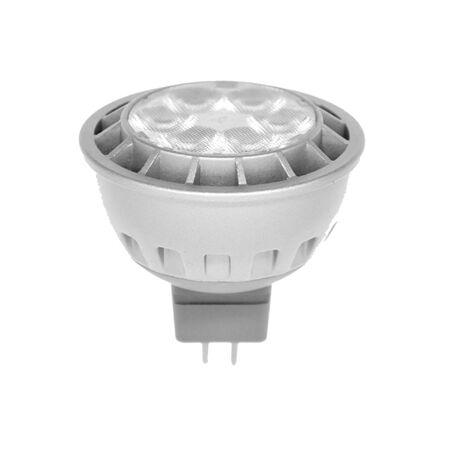

MR16 LED Lamp 9W 12V GU5.3 3000K 6000K 500-550lm Dimmable Sunny

BRAND: Sunny
SKU: MR16DIM9W
$22.30 List price: $30.40
+ −
30 Days Return Electricians Unlock Trade Access
Sunny 9W MR16 LED lamp features 12V AC DC input, GU5.3 base, 500-550lm output, 60° beam and dimmable operation. CRI over 80.
Technical Specifications
  • Power: 9W
  • Input Voltage: 12V AC or DC
  • Luminous Flux: 500lm (3000K), 550lm (6000K)
  • Beam Angle: 60 degrees
  • Color Temperature: 3000K (warm white), 6000K (daylight)
  • CRI: >80
  • Dimmable: Yes
  • Lamp Base: GU5.3
  • Dimensions (H x L x W): 59 mm x 50 mm x 50 mm
  • Weight: 0.1 kg
Key Features
  • Poly covered aluminium housing
  • Shockproof frosted polycarbonate lens
  • High efficiency LED chips
  • Directly replaces MR16 halogen lamps
  • Compatible with 12V AC or DC drivers
  • Compatible with AcTEC and leading brand electronic transformers
  • Suitable for most halogen MR16 fittings
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compatibility with existing transformers and safe electrical connections.
Applications
  • Residential lighting: indoor and outdoor MR16 fittings
  • Commercial lighting: retail, hospitality, offices
  • Replacement for halogen MR16 lamps in existing fixtures
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption compared to halogen lamps
  • Longer lifespan reduces waste and replacement frequency
  • Lower heat emission improves safety and reduces cooling energy needs
Warranty Information

Standard manufacturer warranty applies, typically 2 years against defects.

Available Now

The LED MR16 Lamp 12V Dimmable 9W GU5.3 in 3000K and 6000K is available now for immediate purchase. Ideal for residential and commercial lighting applications requiring energy-efficient MR16 replacements.


FAQ

Q: Is this MR16 lamp compatible with existing transformers?

A: Yes, it's compatible with 12V AC or DC drivers, including AcTEC and leading brand electronic transformers.

Q: What colour temperature options does this lamp offer?

A: It's available in 3000K warm white or 6000K daylight, with dimming support and a CRI above 80.


For a fixed installation, an elv push-in lampholder suits the same 12V MR16 fitting type.

A wired connector option is also available with the MR16 lamp holder with wire for easy replacement wiring.

For a fixed downlight base rated up to 2A, the GU10 lampholder cap offers a comparable mounting option.

Add to your order today and ship Australia-wide with SCHNAP's reliable delivery network.
