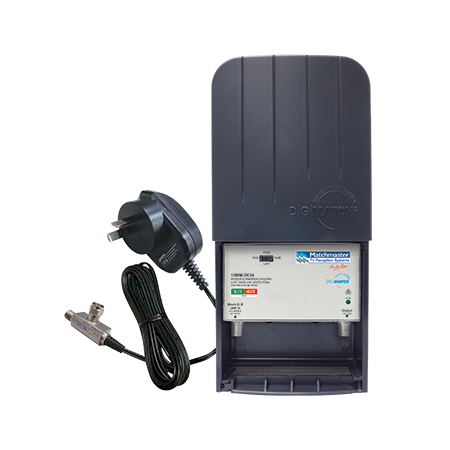

Multiband Masthead Amplifier UHF 34dB | 4G/5G Filter | Power Supply by Matchmaster
Multiband masthead amplifier with 34dB gain and built-in 4G/5G filter—ideal for enhancing UHF signal reception. Perfect for residential and commercial use, with included power supply for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

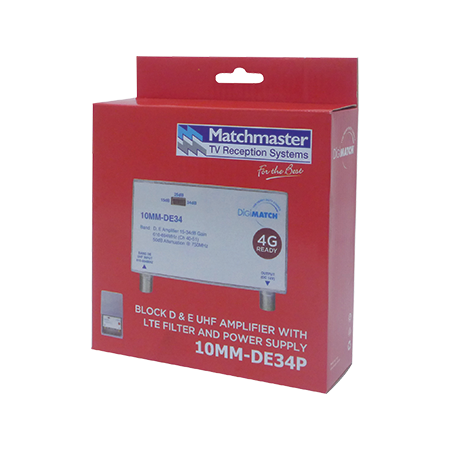

Product Name/Title: Multiband Masthead Amplifier UHF 34dB with 4G/5G Filter and Power Supply
Brand: Matchmaster
SKU: 10MM-DE34P
Alternatively Known As: UHF Masthead Amplifier, Multiband TV Amplifier, 4G/5G Filtered Masthead Amp, Outdoor TV Signal Booster
Technical Specifications
- Input Frequency Range: 610-694 MHz (Channels 40-51)
- Gain: Switchable 15/25/34 dB
- Output Level: >102 dBuV
- Return Loss: >12 dB typical
- Noise Figure: <=5 dB
- Impedance: 75 Ohm
- Power Consumption: 90 mA
- Connectors: All 'F' female connectors
- Housing: Nickel plated alloy and waterproof ABS plastic
- Power Supply: 190-240V AC/50-60 Hz input, 14V DC/300 mA output
- DC Cable Length: 1.8m
- Dimensions (H x L x W): 108mm x 50mm x 123mm
- Weight: 0.3 kg
Key Features
- Combined blocks D & E 34dB amplifier suitable for Gold Coast and Central Coast regions
- 34dB maximum gain with selectable adjustment switch (15, 25, 34dB)
- Filtering at 750MHz is >50dB at maximum gain to prevent 4G/5G LTE interference
- UHF input return loss >11dB with noise figure <2.9dB

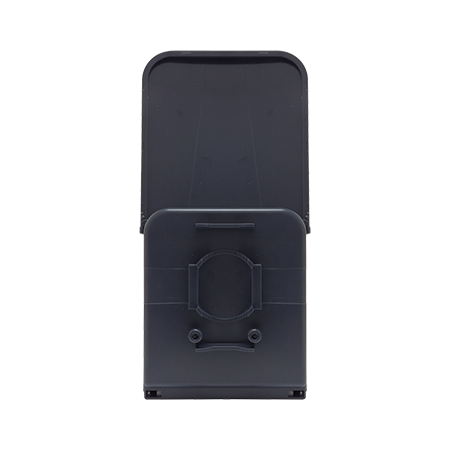

- Heavy-duty UV stable outdoor weatherproof casing
- Includes 14V DC power supply and cable ties for mounting
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal performance and compliance with local regulations.
Applications
- Residential and commercial TV antenna systems in Gold Coast and Central Coast regions
- Use in areas with combined regional and metro UHF channels
- Outdoor antenna amplification with 4G/5G LTE interference filtering
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Improves TV signal reception reducing the need for multiple antennas and repeaters
- Energy-efficient power consumption at 90mA
- Durable weatherproof casing extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster Multiband Masthead Amplifier UHF 34dB with 4G/5G Filter and Power Supply is available now for immediate purchase. Ideal for enhancing TV signal reception in residential and commercial antenna systems.
