'N' Type to SMA Plug Adaptor | DC to 18 GHz | 50 Ohm | Nickel Plated by Matchmaster
'N' Type to SMA plug adaptor with DC to 18 GHz frequency range and 50 Ohm impedance—ideal for wireless communications and RF applications. Built for robust connections, with a compact design and durable nickel-plated brass construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

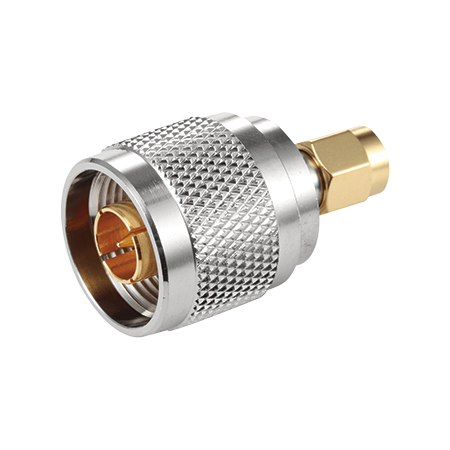

Product Name/Title: 'N' Type Plug to SMA Plug Adaptor
Brand: Matchmaster
SKU: 56MM-NP-SMAP
Alternatively Known As: N to SMA Adapter, N Male to SMA Male Connector, RF Adapter, Coaxial Cable Adapter
Technical Specifications
- Frequency Range: 6 GHz (Maximum)
- Impedance: 50 Ω
- Dielectric Withstanding Voltage: 1500V (RMS)
- Temperature Range: -40ºC to +85ºC
- Insulation Resistance: ≥ 5000MΩ
- Mating Thread: 5/8-24 UNEF-2A
- Durability: ≥ 500 cycles
- Dimensions (H x L x W): 15mm x 50mm x 30mm
- Weight: 0.05 kg
Key Features
- Used to join two cables together or adapt hardware interfaces
- Centre pin gold plated
- Standard 5/8-24 UNEF-2A thread
- Frequency range up to 6 GHz
- Brass body with nickel plating
- Durability of ≥ 500 cycles
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and performance.
Applications
- Cellular and 2-Way Radio installations
- Connecting Female 'N' type interfaces to Female SMA interfaces
- Adapting hardware interfaces between 'N' type and SMA fittings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated brass construction reduces need for frequent replacements
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 'N' Type Plug to SMA Plug Adaptor is available now for immediate purchase. Ideal for cellular and 2-way radio applications requiring reliable RF connections.
